Radxa Zero Waveshare 5.5" Amoled no config.txt file

Troubleshooting
1

Hello. On the beginning i want to write i’m complete noob on linux command lines but i hoping the problem it isn’t on my side. I want to use Dietpi with radxa zero as portable mediaplayer with m.2 disk problem is i only have waveshare displays and both not working with dietpi instaled on radxa zero. Displays are HDMI and working well with Dietpi on RPI4 so Displays are ok, radxa zero with Dietpi work fine with two TV one 4K another HD or FHD.
Ineed to know which file i supose to edit and put display configuration
https://www.waveshare.com/wiki/5.5inch_HDMI_AMOLED

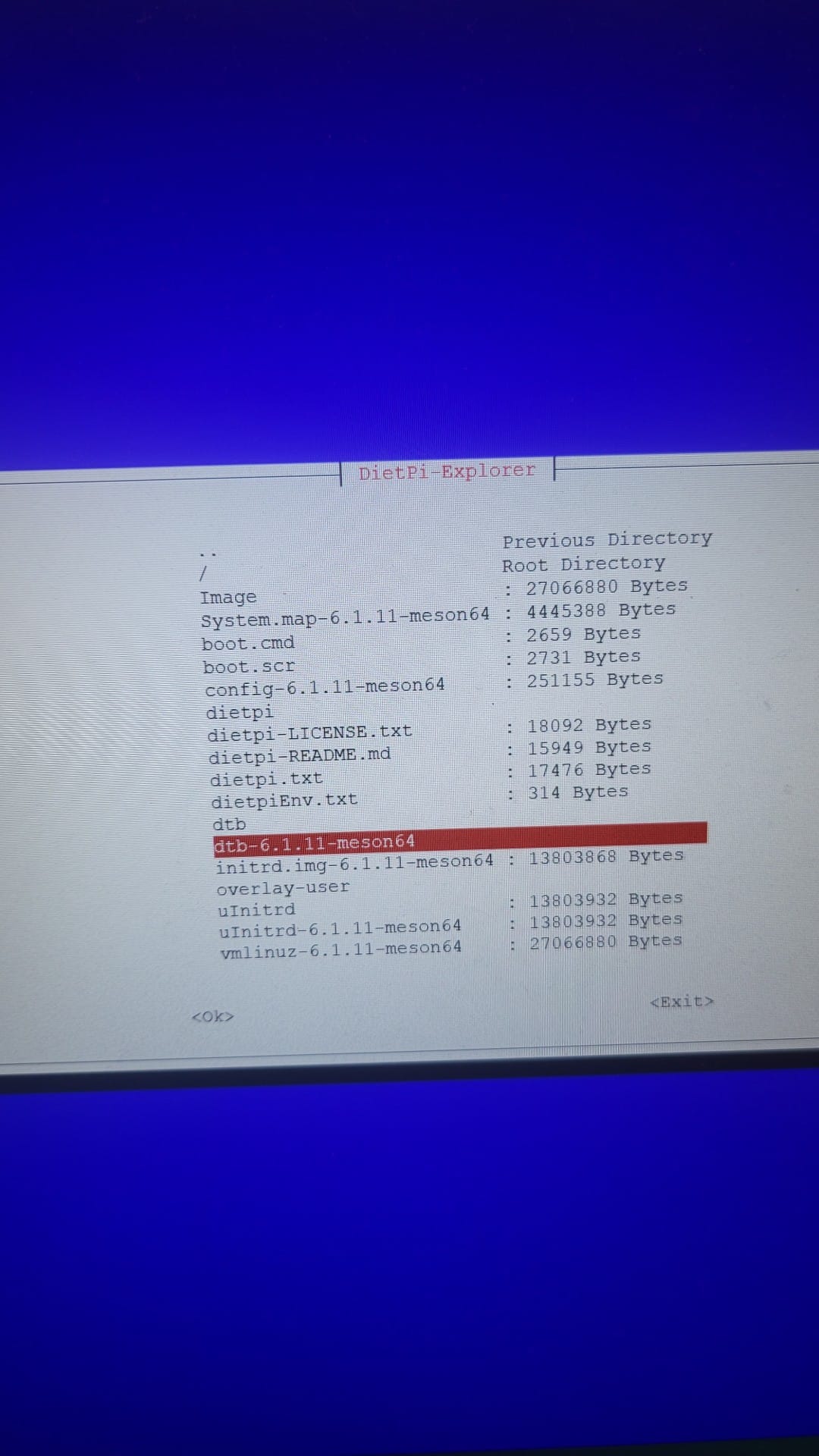

Under boot directory i do not have config.txt file

371862536_9969610036445499_4787253655996807534_n
371862536_9969610036445499_4787253655996807534_n1080×1920 146 KB

Dietpi installed on emmc i’m using PuTTY on windows and kyboard with TV after flashing emmc or micro sd with system i cannot browse the files.
I’m really open for ideas so bad that i even ordered Pi Zero 2w but im scared that 512mb ram is not gonna be enough to play flac files.

2

config.txt is RPi specific file and not available on other SBC.

3

So where i supose to put display settings?

4

YOo need add the correct overlay in /boot/armbian.txt I think.
or is it dietpiEnv.txt? there should be another txt file :smiley:

5

Maybe @MichaIng knows which one is needed

6

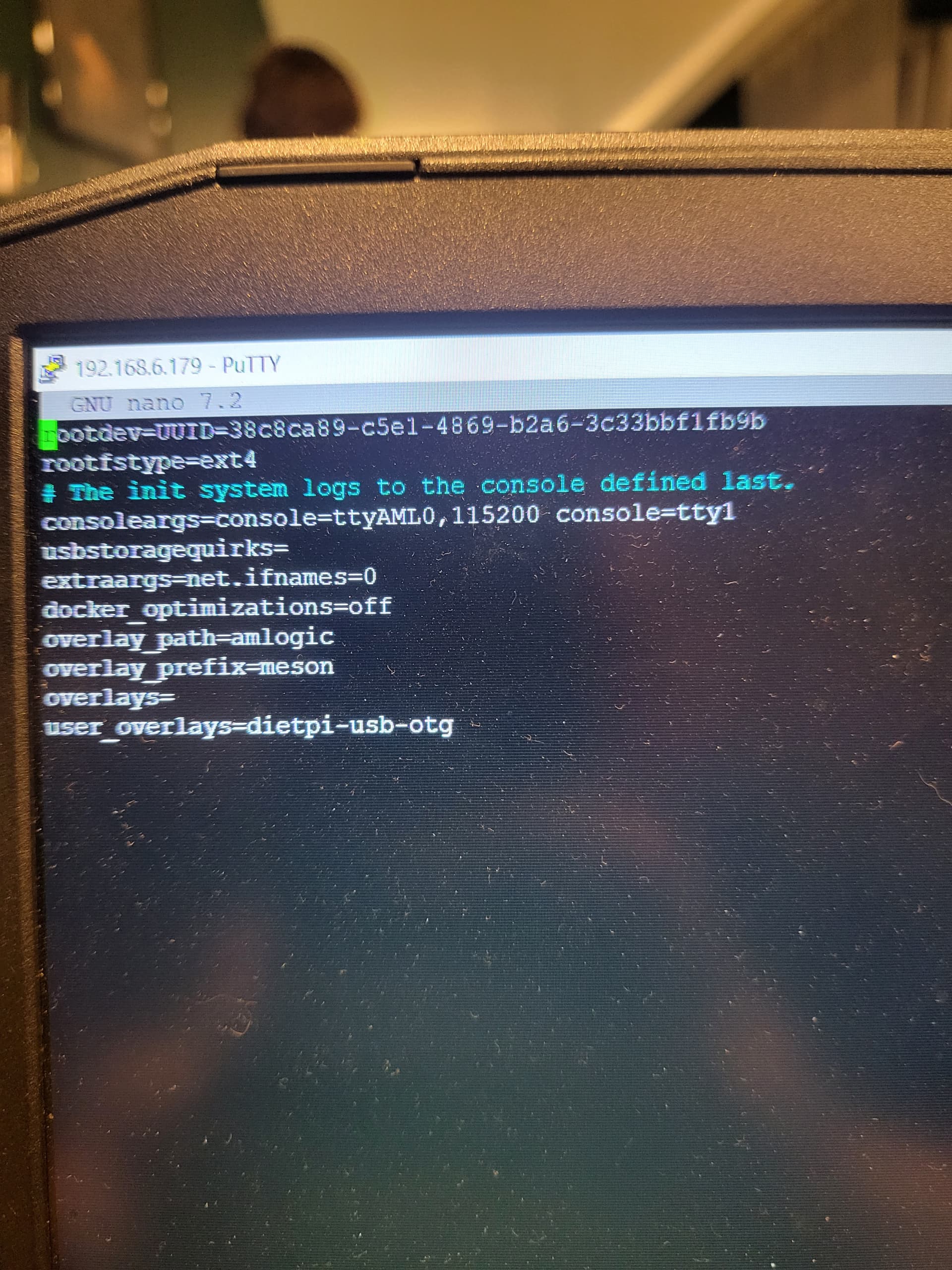

There is dietpiEnv.txt and look like this:

20230901_222507
20230901_2225071920×2560 596 KB

7

If I understood correctly @joeder3th got a Waveshare 10.1 QLED working on a Radxa Zero 2

8

Other than GPIO-attached LCDs, HDMI LCDs do not require any device tree overlay.

What exactly is the issue current? Usually the native resolution should be auto-detected and applied automatically.

Do you need it to show the bare console or some desktop/GUI/X application?
