Not working installation instructions on dietpi website

General Discussion
1

when I am following the installation instructions on dietpi.com then they just don’t work.
dietpi.com/docs/install/

It probably has to do with that wifi needs to be enabled in diepi.txt?
It would be nice if the installation instructions posted on the website would be working.

the search on dietpi.com diesn’t return any example configuration neither for dietpi-wifi.txt nor for dietpi.txt

It would be nice to be able to change the configuration files so that one just has to put the SD card into the PI Zero and things would start to work.

I had an example configuration for the two mentioned files but can’t find them anymore.

Now it is not possible to get dietpi running on the zero 2W anymore.

Can anybody help please?

# Entry 0
# - WiFi SSID: required, case sensitive
aWIFI_SSID[0]='abc'
# - WiFi key: If no key/open, leave this blank
# - In case of WPA-PSK, alternatively enter the 64-digit hexadecimal key returned by wpa_passphrase
# - Please replace single quote characters ' in your key with '\''. No other escaping is required.
aWIFI_KEY[0]='123456789abc'
# - Key type: NONE (no key/open) | WPA-PSK | WEP | WPA-EAP (then use settings below)
aWIFI_KEYMGR[0]='WPA-PSK'
# - WPA-EAP options: Only fill if WPA-EAP is set above

so is it supposed to be aWIFI_SSID[0]=‘abc’ or aWIFI_SSID[0]=abc?
and
aWIFI_KEY[0]=‘123456789abc’ or aWIFI_KEY[0]=123456789abc?

and what does # - Please replace single quote characters ’ in your key with ‘\’'. No other escaping is required. is supposed to mean? ‘yourkeyhere’? but probably ’ and not “?

2

I have just successfully tested the installation on my RPi4. There were no problems connecting automatically to the Wi-Fi during the initial setup.

The Wi-Fi name and Wi-Fi password belong between the quotation marks. Just like that.

aWIFI_SSID[0]='abc'
aWIFI_KEY[0]='123456789abc'

Do not forget to edit the dietpi.txt file. Find AUTO_SETUP_NET_WIFI_ENABLED and set the value to 1.

Everything is as described in the installation documents. I couldn’t find any mistakes.

This only applies if you use special characters in your password. If this is not the case, this note is irrelevant.

3

thanks for trying to help.
I am happy that it works for you, but it doesn’t work for me nor for others unfortunately.
It would be great if the dietpi/docs/instalation could be edited so that they work in a real world scenario.

Who doesn’t use special characters in there wifi password these days!

why not just write instructions so that people can follow them and so that they work?
Make it simple.

I am trying to edit dietpi-wifi.txt so that I can just simply insert the SD card into the pi and automatically connect to my wifi so that it boots.

# - Please replace single quote characters ' in your key with '\''. No other escaping is required.
aWIFI_KEY[0]='-+/?%&$*'

does not work

# - Please replace single quote characters ' in your key with '\''. No other escaping is required.

what does that mean? what is it supposed to mean? what is ’ and what is ‘\’'?

‘ “ ‘ “ ‘ “ ‘ “ ‘ “ ‘ “ ‘ “ ‘ “ ???
can you please update the dietpi-wifi.txt and dietpi/docs/instalation?
It is also missing how to get the Access Point working on first boot to just log in to the dietpi.

How to install DietPi¶
The installation of DietPi consists of few steps:

Provide an installation media (e.g. SD card for single board computer or USB stick for PC)
Get the DietPi image (and put it on the installation media)
Boot up the DietPi device and go through one time installation steps

Boot up the DietPi device and go through one time installation steps

But how do I connect to it? How do I get there to go through the steps?

4

Who are the others?

The documentation is correct and works. In my test, I did nothing other than what is described in the documentation. Here, too, it would be good to describe what does not work.

I don’t know how it could be any simpler.

  1. Open the file named dietpi.txt. Find AUTO_SETUP_NET_WIFI_ENABLED and set to value 1
  2. Open the file dietpi-wifi.txt and set aWIFI_SSID[0] to the name of your WiFi network.
  3. In the same file dietpi-wifi.txt, set aWIFI_KEY[0] to the password of your WiFi network.
  4. Save and close the files

With what?

There is no such function. The SBC must connect to the Wi-Fi or Ethernet for the initial setup. An internet connection is essential.

You can then connect to the SBC via the local LAN/Wi-Fi.

1 Like
5

‘‘ does not work.

elaborate on this confusing paragraph and correct it. “ does not work.

“ does not work. what does ‘\’’ mean at all? why is it there if it has to be ‘yourpasswordhere’ for it to work?

that dietpi.txt and dietpi-wifi.txt need to be edited. or did I just not see it being mentioned?

‘yourpasswordhere’ works, ‘/” doesn’t.

I appreciate your help, I found the error in the dietpi-wifi.txt by trial and error and thanks to your help.
I got it to work now, you are a superstar :+1:

6

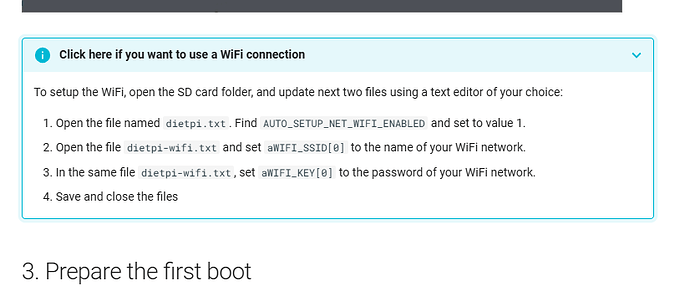

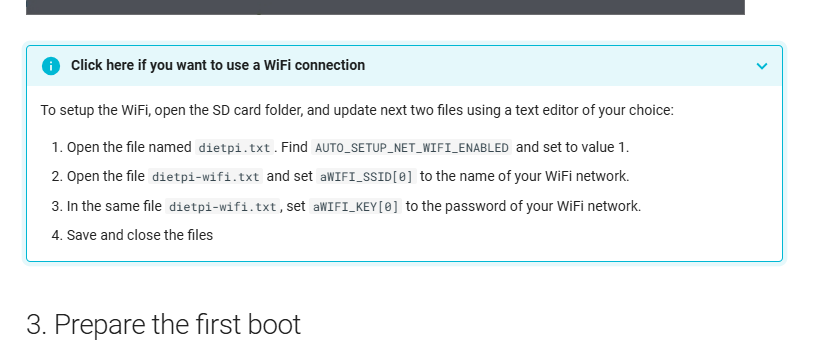

it’s in the docs already

image826×348 26.3 KB

as well as in dietpi.txt, line 28

1 Like
7

wow it’s all there and I didn’t read it properly,

thanks for clarifying. Still no idea what the ‘/” means and that probably stopped it from making it work?

The rest is clear now, I appreciate your patience, it works now.

8

'\'' is needed to mask special characters

9

' characters needs to be escaped. To escape a character, you put a \ in front of it, so you get \'
So if you password would be ', you need to write '\''
Because the whole password sequence is enclosed in ' single quote characters, the system needs to know what is part of the password and what not.
Imaging you have a password !#123Pass'LOL and in the file you write '!#123Pass'LOL' the system would just take !#123Pass, because that is the part between two ' single quotes.
To prevent this behavior you escape the single quotes which are part of the password, so you would need to write '!#123Pass\'LOL'

1 Like
