Xfce not starting

Creating a bug report/issue

I have searched the existing open and closed issues

Required Information

  • DietPi version | G_DIETPI_VERSION_CORE=9
    G_DIETPI_VERSION_SUB=4
    G_DIETPI_VERSION_RC=2
    G_GITBRANCH=‘master’
    G_GITOWNER=‘MichaIng’
    G_LIVE_PATCH_STATUS[0]=‘not applicable’
  • Distro version | bookworm
  • Kernel version | Linux pc-tv 6.1.0-21-amd64 #1 SMP PREEMPT_DYNAMIC Debian 6.1.90-1 (2024-05-03) x86_64 GNU/Linux
  • Architecture | amd64
  • SBC model | Native PC (x86_64) (Fujitsu Futro S920 ThinClient)
  • Power supply used | Original Fujitsu Power Supply
  • SD card used | Transcend MSA220S 128 GB, SSD

Additional Information (if applicable)

  • Software title | Xfce
  • Was the software title installed freshly or updated/migrated? | Freshly
  • Can this issue be replicated on a fresh installation of DietPi? | Yes
    ← If you sent a “dietpi-bugreport”, please paste the ID here →
  • Bug report ID | 700441f9-1c7d-41f2-b88d-49512728221f

Steps to reproduce

  1. Install Xfce
  2. Run startx or startxfce4

Expected behaviour

  • Desktop starting

Actual behaviour

  • AT-SPI: Error retrieving accessibility bus address: org.freedesktop.DBus.Error.Service.Unknown: The name .org.a11y.Bus was not provided by any .service files.
  • See Photo

Extra details

  • Installed at-spi2-core, did not fix the issue.
  • Installed AMD Driver and created the X Configuration (automatically)
  • Installed VNC server alongside with Xfce
  • Device is connected to my TV via DisplayPort → HDMI Cable

Did you install xfce via dietpi-software?

dietpi-software install 25

Maybe our related blog posts can give some more hints: X11 – DietPi Blog

Yes, I installed Xfce via dietpi-software menu.

Thanks for the link, I installed GNOME and it works.

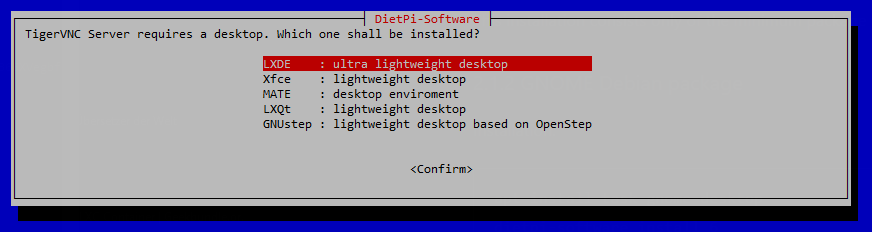

But when I try to install a VNC server now, it asks me which desktop to install?

Yeah because DietPi does not offer GNOME, so you installed it on your own and the script can not detect it.

Your initial problem is also maybe bound to this:
https://dietpi.com/forum/t/hyper-v-autostart-dekstop-gui-not-working/20053/2

Can you share your logfile

cat /var/log/Xorg.o.log

,

Xorg.0.log (54.3 KB)

The futro S920 has a Display Port and a DVI interface. Which one do you use?
Maybe the startx command try to open to the one port without a monitor connected (I am not familiar with X11)?

As stated in the initial post:

I guess I will just install Ubuntu 24.04 on that thing. I will only control it via RDP and that always worked without any issues on Ubuntu.

1 Like

DietPi is offering xRDP. Did you tried that one?

Yep, does not work at all. It asks for credentials, then the window is closed. Nothing else happens.

You mean RDP window is closing? Can you share a picture of the last window shown?

I have now reinstalled DietPi completely, so I am on a fresh installation now.

What would be the correct way to get a working desktop and being able to control the session I see on my TV from another device? Xfce from dietpi-software did not work as per my initial post.

Installed Xfce again. It does not throw an error on startxfce4, instead the screen just turns black, then No Signal. What now?

Xorg Log:

   172.128] (II) modeset(0): EDID vendor "MJI", prod id 53
[   172.129] (II) modeset(0): Using EDID range info for horizontal sync
[   172.129] (II) modeset(0): Using EDID range info for vertical refresh
[   172.129] (II) modeset(0): Printing DDC gathered Modelines:
[   172.129] (II) modeset(0): Modeline "3840x2160"x0.0  594.00  3840 4016 4104 4400  2160 2168 2178 2250 +hsync +vsync (135.0 kHz eP)
[   172.129] (II) modeset(0): Modeline "1920x1080"x0.0  148.50  1920 2008 2052 2200  1080 1084 1089 1125 +hsync +vsync (67.5 kHz e)
[   172.129] (II) modeset(0): Modeline "1920x1080"x0.0  148.50  1920 2448 2492 2640  1080 1084 1089 1125 +hsync +vsync (56.2 kHz e)
[   172.129] (II) modeset(0): Modeline "1280x720"x0.0   74.25  1280 1390 1430 1650  720 725 730 750 +hsync +vsync (45.0 kHz e)
[   172.129] (II) modeset(0): Modeline "1280x720"x0.0   74.25  1280 1720 1760 1980  720 725 730 750 +hsync +vsync (37.5 kHz e)
[   172.129] (II) modeset(0): Modeline "1920x1080i"x0.0   74.25  1920 2008 2052 2200  1080 1084 1094 1125 interlace +hsync +vsync (33.8 kHz e)
[   172.129] (II) modeset(0): Modeline "1920x1080i"x0.0   74.25  1920 2448 2492 2640  1080 1084 1094 1125 interlace +hsync +vsync (28.1 kHz e)
[   172.129] (II) modeset(0): Modeline "720x480"x0.0   27.00  720 736 798 858  480 489 495 525 -hsync -vsync (31.5 kHz e)
[   172.129] (II) modeset(0): Modeline "720x576"x0.0   27.00  720 732 796 864  576 581 586 625 -hsync -vsync (31.2 kHz e)
[   172.129] (II) modeset(0): Modeline "1920x1080"x0.0   74.25  1920 2558 2602 2750  1080 1084 1089 1125 +hsync +vsync (27.0 kHz e)
[   172.129] (II) modeset(0): Modeline "1920x1080"x0.0   74.25  1920 2448 2492 2640  1080 1084 1089 1125 +hsync +vsync (28.1 kHz e)
[   172.129] (II) modeset(0): Modeline "1920x1080"x0.0   74.25  1920 2008 2052 2200  1080 1084 1089 1125 +hsync +vsync (33.8 kHz e)
[   172.129] (II) modeset(0): Modeline "1440x576i"x0.0   27.00  1440 1464 1590 1728  576 580 586 625 interlace -hsync -vsync (15.6 kHz e)
[   172.129] (II) modeset(0): Modeline "640x480"x0.0   25.18  640 656 752 800  480 490 492 525 -hsync -vsync (31.5 kHz e)
[   172.129] (II) modeset(0): Modeline "1920x1080"x0.0  297.00  1920 2008 2052 2200  1080 1084 1089 1125 +hsync +vsync (135.0 kHz e)
[   172.129] (II) modeset(0): Modeline "1920x1080"x0.0  297.00  1920 2448 2492 2640  1080 1084 1094 1125 +hsync +vsync (112.5 kHz e)
[   172.129] (II) modeset(0): Modeline "1440x480"x0.0   54.00  1440 1472 1596 1716  480 489 495 525 -hsync -vsync (31.5 kHz e)
[   172.129] (II) modeset(0): Modeline "2880x480"x0.0  108.00  2880 2944 3192 3432  480 489 495 525 -hsync -vsync (31.5 kHz e)
[   172.129] (II) modeset(0): Modeline "1440x576"x0.0   54.00  1440 1464 1592 1728  576 581 586 625 -hsync -vsync (31.2 kHz e)
[   172.129] (II) modeset(0): Modeline "800x600"x0.0   40.00  800 840 968 1056  600 601 605 628 +hsync +vsync (37.9 kHz e)
[   172.129] (II) modeset(0): Modeline "720x400"x0.0   28.32  720 738 846 900  400 412 414 449 -hsync +vsync (31.5 kHz e)
[   172.129] (II) modeset(0): Modeline "1024x768"x0.0   65.00  1024 1048 1184 1344  768 771 777 806 -hsync -vsync (48.4 kHz e)
[   172.129] (II) modeset(0): Modeline "1152x864"x60.0   81.62  1152 1216 1336 1520  864 865 868 895 -hsync +vsync (53.7 kHz e)
[   172.129] (II) modeset(0): Modeline "1280x1024"x0.0  108.00  1280 1328 1440 1688  1024 1025 1028 1066 +hsync +vsync (64.0 kHz e)
[   172.129] (--) modeset(0): HDMI max TMDS frequency 300000KHz

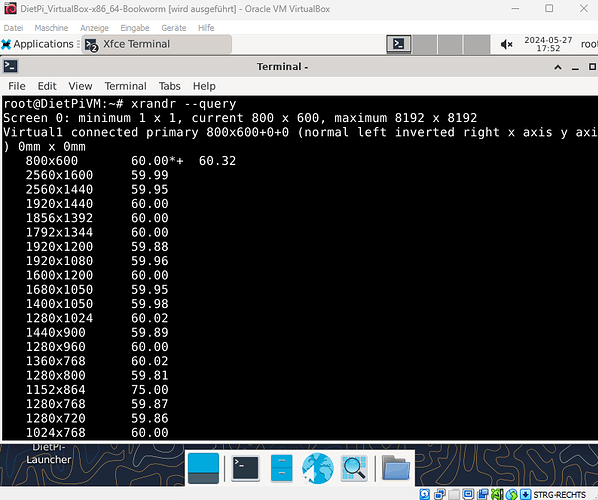

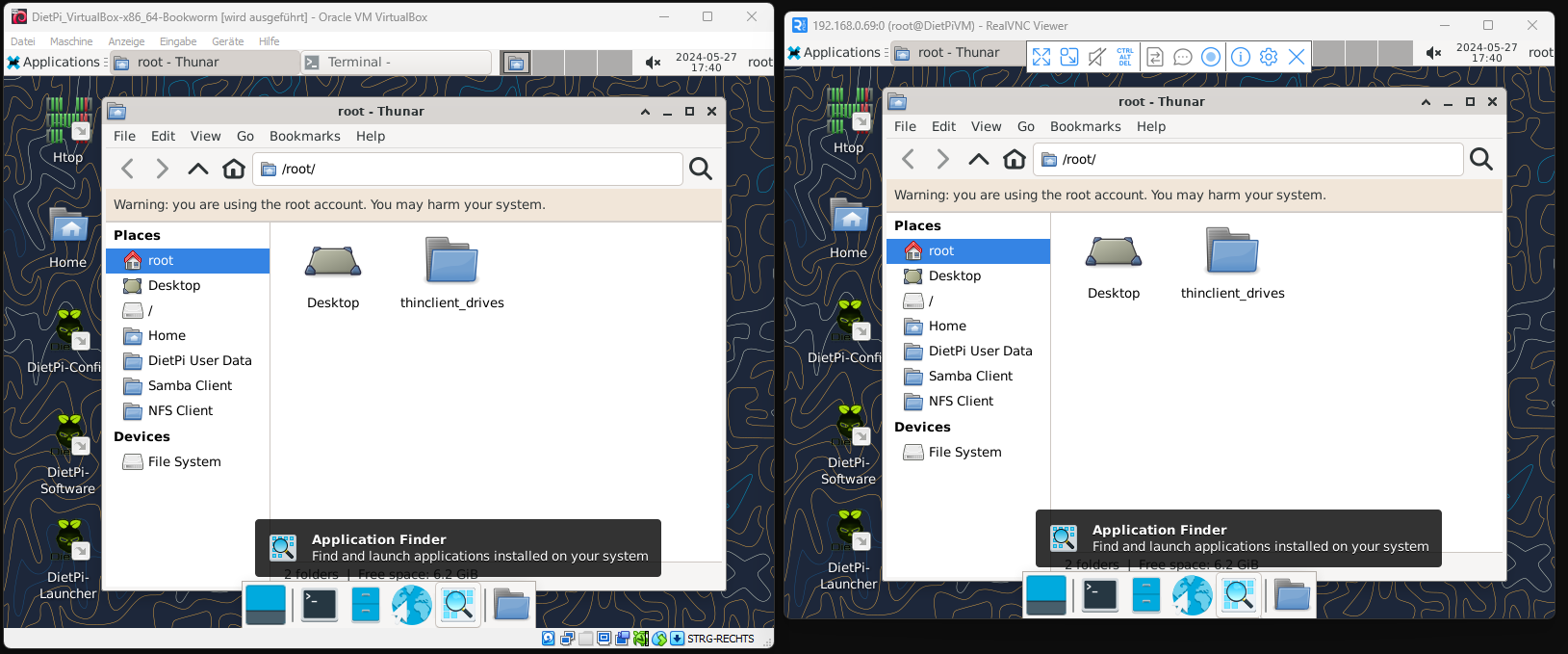

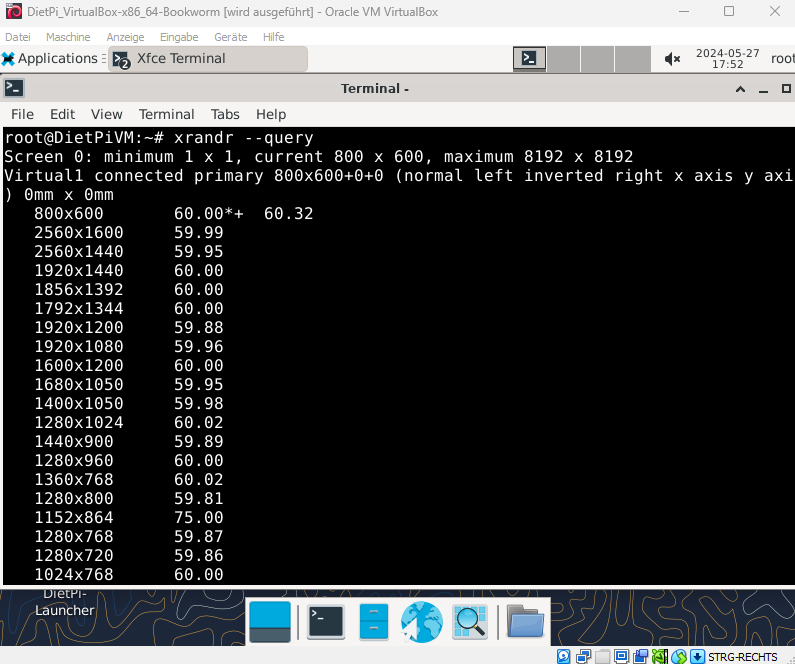

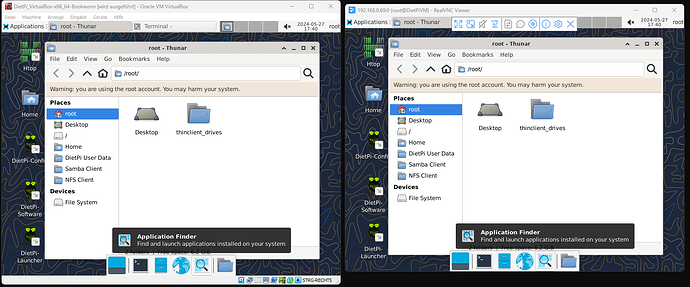

I have no issues to setup VNC using Xfce

left hand side is a VM running inside VBox
right hand side is the VNC session

Maybe it is related to your ThinClient? Did you try plain Debian already? Does this works?

Or did you try using dietpi-autostart option number 2??

I tried a few live systems and all of them were able to boot to the desktop without any issues.

Current AutoStart Option: 7

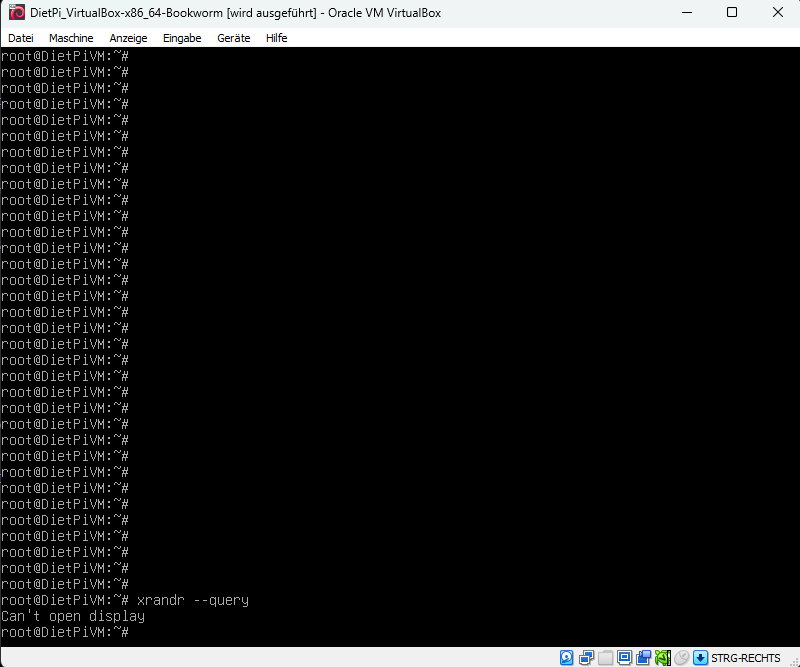

root@pc-tv:~# xrandr --query
Can't open display

this would require a xsession if I’m not mistaken

At least I can start it from a running desktop

But not from command line

So what can I do now to start Xfce?

Is here a problem maybe?

root@pc-tv:~# X -config /root/xorg.conf.new

X.Org X Server 1.21.1.7
X Protocol Version 11, Revision 0
Current Operating System: Linux pc-tv 6.1.0-21-amd64 #1 SMP PREEMPT_DYNAMIC Debian 6.1.90-1 (2024-05-03) x86_64
Kernel command line: BOOT_IMAGE=/boot/vmlinuz-6.1.0-21-amd64 root=UUID=37ad6448-bd39-49e7-8d02-25d74419a970 ro net.ifnames=0 consoleblank=0
xorg-server 2:21.1.7-3+deb12u7 (https://www.debian.org/support)
Current version of pixman: 0.42.2
        Before reporting problems, check http://wiki.x.org
        to make sure that you have the latest version.
Markers: (--) probed, (**) from config file, (==) default setting,
        (++) from command line, (!!) notice, (II) informational,
        (WW) warning, (EE) error, (NI) not implemented, (??) unknown.
(==) Log file: "/var/log/Xorg.0.log", Time: Mon May 27 18:57:12 2024
(++) Using config file: "/root/xorg.conf.new"
(==) Using config directory: "/etc/X11/xorg.conf.d"
(==) Using system config directory "/usr/share/X11/xorg.conf.d"
amdgpu_device_initialize: DRM version is 2.50.0 but this driver is only compatible with 3.x.x.
(II) AMDGPU(1): [KMS] Kernel modesetting enabled.
amdgpu_device_initialize: DRM version is 2.50.0 but this driver is only compatible with 3.x.x.
(II) AMDGPU(2): [KMS] Kernel modesetting enabled.
amdgpu_device_initialize: DRM version is 2.50.0 but this driver is only compatible with 3.x.x.
(EE)
Fatal server error:
(EE) no screens found(EE)
(EE)
Please consult the The X.Org Foundation support
         at http://wiki.x.org

Tried with LXQt desktop. Same thing. startx → Blank Screen → No Signal.

Just tested Kodi, works without any issues. I just type kodi into the terminal and it starts up in full screen on my TV. So why are all the desktops broken :thinking:

Ok, I finally gave up. Installed Ubuntu 24.04. Works out-of-the-box.
