Setting time on PI3 "now" from NTP and tweaking the drift

General Discussion
1

My PI 3 was running slow by 20 seconds. That was a bit of a surprise. (v9.18 diet-pi)

Qu: How can I force an update of the time “now”?

I can read time with “date”, but not “timedatectl status”. Was getting lost with other options.

Tried going into dietpi-config to update the timeservers to the uk.pool.ntp.org but that failed on me as it said it could not set the time.

Next I checked for a dietpi-update. Bonus, first thing it does is force the time to sync. (And I didn’t need an update) Now my time is correct again. Time corrected by the attempted update.

Puzzle - why can I now go into dietpi-config and set the time servers to uk.pool.ntp.org? Is that due to my clock now being accurate?

Do I guess that the original attempt to change the time servers failed due to my clock being so far out? What was different about how the clock was sync’d during the dietpi-update check?

Is that a bug?

And it would still be good to know how to actually set the time on a PI…

2

Hello MadBanana,

what do you mean by that? You get no output with timedatectl? Or an error? Pls elaborate.

Can you please post the full error. I just tried on my productive system and I could set any ntp server I tried. Maybe the error was logged:

journalctl -u systemd-timesyncd

I manually time sync can be invoked with

/boot/dietpi/func/run_ntpd 1

Info:

  • Launched by dietpi-postboot.service, daily or hourly cron job based on CONFIG_NTP_MODE dietpi.txt setting
  • Launches systemd-timesyncd.service for network time sync
    Usage:
  • /boot/dietpi/func/run_ntpd
  • /boot/dietpi/func/run_ntpd 1 | Force new sync despite success flag
3

“date” I can see the date and time. “timedatectl” gives me an error “failed to connect to bus no such file or directory”

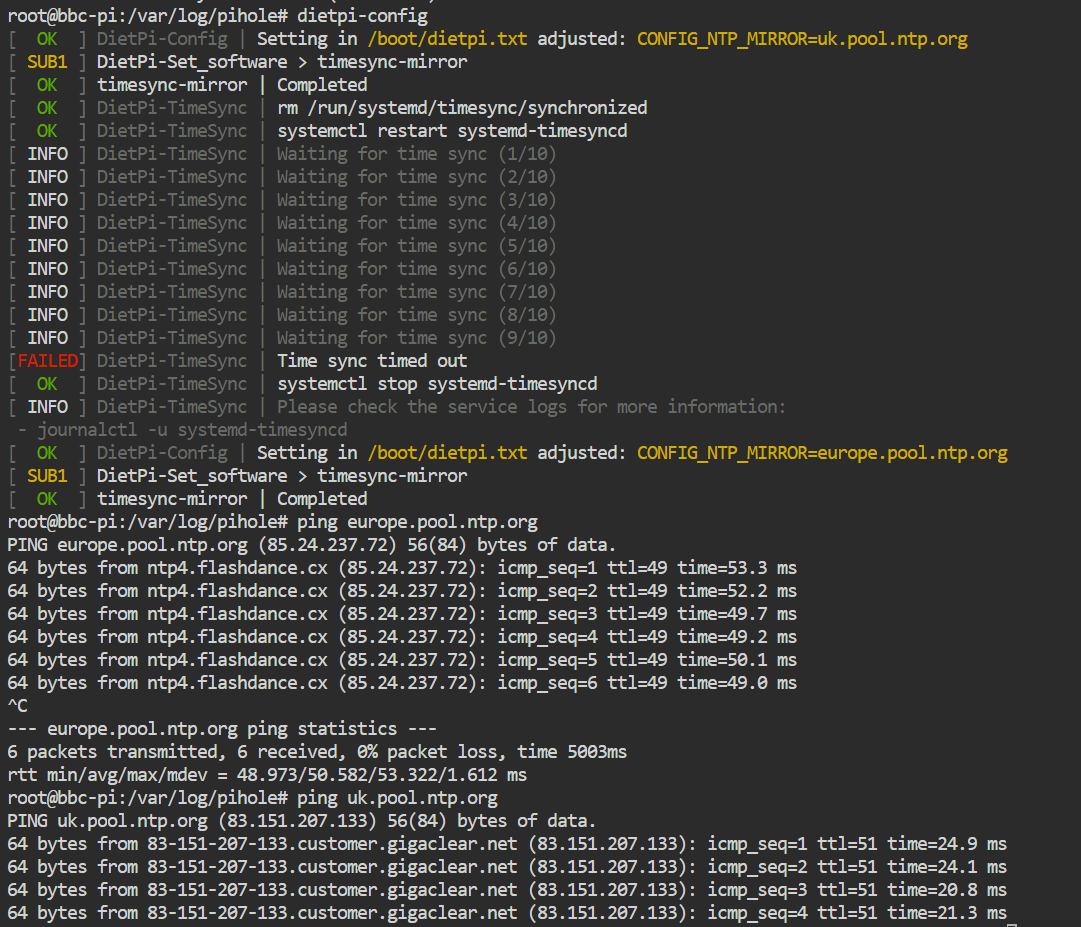

I’m not sure how to copy\paste from my terminal. So a quick screen shot of what happened, plus the double check of some pings

image1081×927 158 KB

Set your clock out of sync and try. Put your time back a minute and see if you can reproduce.

I’ll go see if I can pull that journalctl text for a different post.

Thanks. Will keep that for next time.

4

Interesting.
Can you have a look into

journalctl -u systemd-timesyncd
5

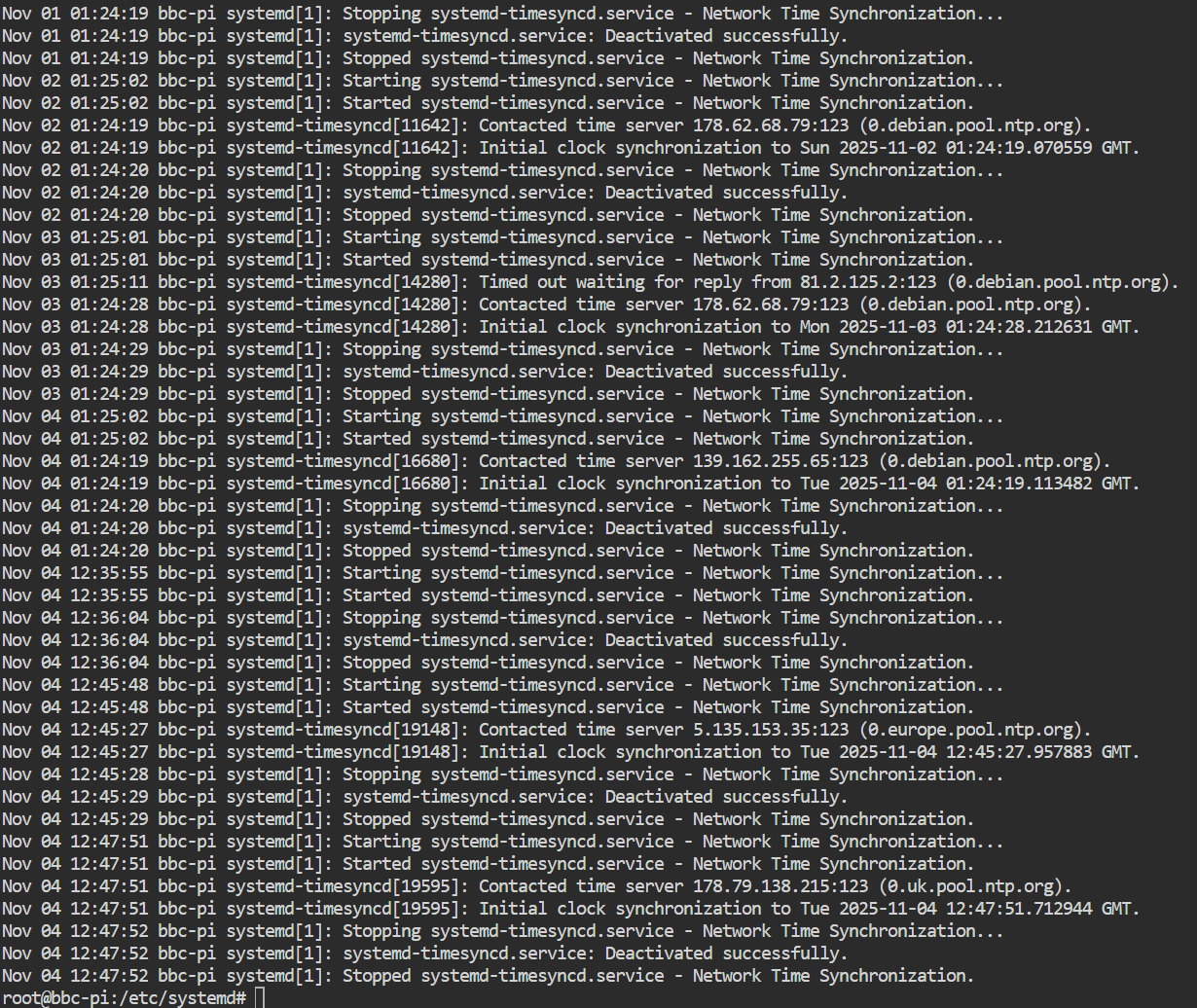

image1230×1036 241 KB

No idea why Debian mentioned in there. When I looked at dietpi-config it initially showed europe.pool.ntp.org before my attempted change.

The ones at 12:36 are the failed attempt shown in the screenshot.

After 12:45 is when I found my accidental fix of dietpi-update. And 12:47 will be my successful change.

6

This is an old PI3. And I went poking around after this happened.

Into /etc/systemd

Now my timesync.conf says

[Time]

NTP=0.uk.pool.ntp.org 1.uk.pool.ntp.org 2.uk.pool.ntp.org 3.uk.pool.ntp.org

Checked a backup… yesterday this was blank.

#  This file is part of systemd.
#
#  systemd is free software; you can redistribute it and/or modify it
#  under the terms of the GNU Lesser General Public License as published by
#  the Free Software Foundation; either version 2.1 of the License, or
#  (at your option) any later version.
#
# Entries in this file show the compile time defaults.
# You can change settings by editing this file.
# Defaults can be restored by simply deleting this file.
#
# See timesyncd.conf(5) for details.

[Time]
#NTP=
#FallbackNTP=0.debian.pool.ntp.org 1.debian.pool.ntp.org 2.debian.pool.ntp.org 3.debian.pool.ntp.org
#RootDistanceMaxSec=5
#PollIntervalMinSec=32
#PollIntervalMaxSec=2048

So ignore what I said before. I guess this is why Debian as still on a default from somewhere… but don’t know where the Europe came from in dietpi-config

7

Yes, the debian ntp pool is the default and it will select a ntp server near your location.

8

Thanks. I had read that bit about debian being the default, but was a little confused as old memory of mine told me I had setup this up on a more local NTP pool. Guess maybe not.

I’m going to keep an eye on this PI3 now. A drift of 20 seconds in 12 hours seems a bit extreme.

9

Usually the drift happened if you set CPU frequency and voltage to low.

10

I have not touched those kinds of settings. Intentionally left things at stock. On an official PSU. This only really runs Pi-Hole and acts as house DNS.

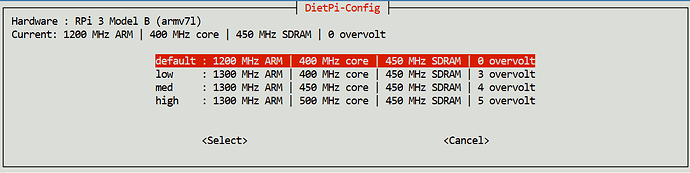

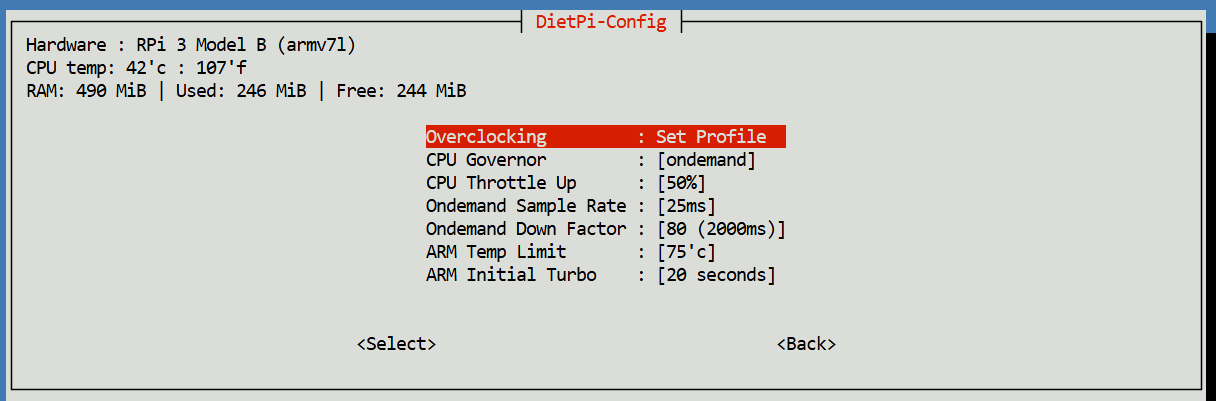

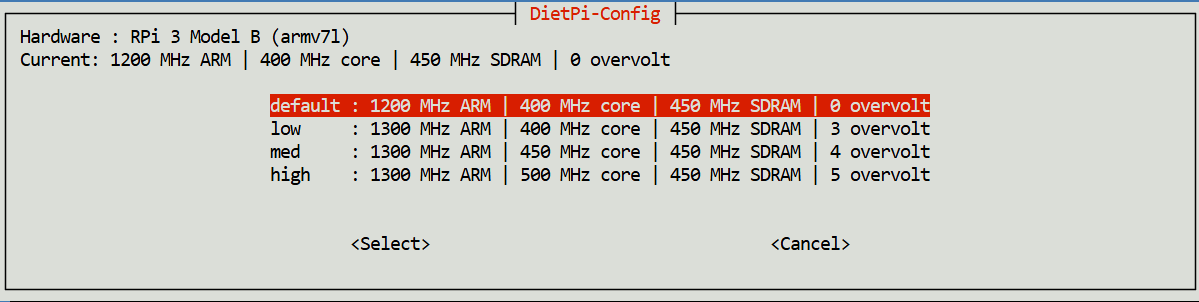

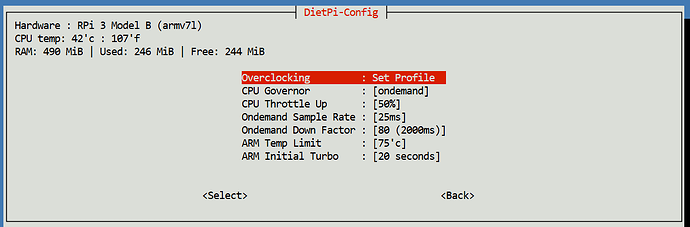

image1216×401 32.4 KB

image1199×302 30.8 KB

I have no idea what those should be set at. So have left well alone.

It is only because I tried to use it as an NTP server on the network did I start looking at this stuff. Seeing large jitter\offset values when compared with external NTP made me start digging. Which is when I found the 20second discrepancy.

11

This PI3 is shockingly badly off with the clock. I checked just now, 10 hours later. And it is another 20 seconds out. Thanks to the command supplied I can now request a sync… but that fails on the first 10 attempts. Which kinda matches the earlier situation where it only tried 9 times before giving up.

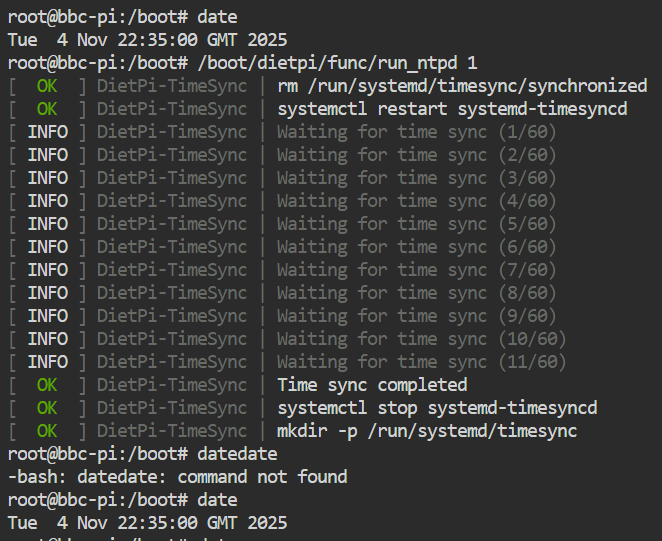

image662×541 71.8 KB

The funny part of the above image is the clock was 20 seconds out at the start… and then the fix took 20 seconds to complete. So it looks like time stood still while the clock corrected :grin:

What makes me curious are the 11 attempts required to sync. This explains why that initial attempt of changing the NTP server fails as it is just too slow to respond for ten tries.

Don’t know why it is so slow… a second attempt gets a reply on the first try.

Next question to self - do I swap to a PI4, which would mean scrapping the PI3? Or do I get it a RTC chip? As it stands this thing is loosing two seconds an hour.

12

Hmm what do you run on the RPi 3? Do you have an external drive connected by any chance or something which could draw some power, which could influence the device?

Since the RPi 3 has no RTC, the precision of the SoC clock is influenced by CPU temperature and voltage fluctuations. So some seconds drift per hour are expected. Maybe you are a bit unlucky with your device.
Because of this problem, a sync is executed on boot and on daily basis (by default). You can change this behaviour within /boot/dietpi.txt file.

There is a line

# Network time sync: 0=disabled | 1=boot only | 2=boot + daily | 3=boot + hourly | 4=Daemon + Drift
CONFIG_NTP_MODE=2

So you could change it to 3 or even 4 and see if it helps you.

13

If you need it, install DBus:

apt install dbus
systemctl start dbus
timedatectl

With RPi 3 in particular, also from other RPi models but less often/critical, we know that reducing the min/idle CPU frequency too much causes the clock to run too slow. We already raised the possible minimum that can be set in dietpi-config to 300 MHz, but there are individual boards which have issues with that as well, and rare cases even show this behavior with default idle clock. There are some good and some bad chips, sadly.

You can address this with hourly time sync mode, or daemon mode, depending on how precise it needs to be. Or of course raise the minimum frequency … oh, I just recognized we removed the option completely for anything below RPi 4, for this reason … and I remember there were even more critical issues in a few cases: RPi hangs and crashes with lowered idle/min clock on Linux 5.4.51+ · Issue #3690 · MichaIng/DietPi · GitHub
… if I remember correctly it is even ignored by the RPi firmware on these models.

I just enabled the CPU scheduler based min/max frequency limits option for those models for next DietPi release, so the minimum frequency can be raised to test whether it helps: dietpi-config: show scaling frequency limits option on RPi 0-3 · MichaIng/DietPi@b3bce56 · GitHub

To test:

for i in /sys/devices/system/cpu/cpufreq/policy[0-9]*
do echo 900000 > "$i/scaling_min_freq"
done

Applies 900 MHz min/idle frequency. See whether it changes something. Of course might not be a great solution due to higher power consumption => heat emission.

To check which frequencies are available:

for i in /sys/devices/system/cpu/cpufreq/policy[0-9]*
do cat "$i/scaling_available_frequencies"; echo
done

AFAIK there is more possible between 600 and 900. Maybe 700 and maybe this solves the issue already.

14

I had seen that option and was considering it. Would still be out by two seconds at the end of the hour, but would keep things closer.

This PI has no external items attached. Ethernet, no wifi. Runs Pi-Hole and Unbound. Is the DNS for this geeky house with between six to twelve devices. Something is constantly chattering at it. Decent power supply. Shares a UPS. Temps shown above at 42C. Got to 50 in the summer but then stuck a laptop cooling pad under it.

@MichaIng you mention about not reducing the CPU frequency. As far as I know this is still left on stock (screenshots above). I have never actually touched it so don’t know what is should be.

I tested for which CPU frequencies are available and it listed 600000 to 1200000. So I have made a tweak of trying 700000 for now and see what happens.

Doing a quick check now of the slippage since I last looked it is consistent. @07:35 it is 12 seconds out since the daily OS sync at @01:24.

Thanks for the assistance from both of you. Digging into stuff like this always means learning something new. The fun part of a PI.

An RTC chip is cheap will grab one and hack that into place. Following a combo of this and this

I don’t really want to scrap this old board yet if I can avoid it.
