rpi gpio node-red library not work on dietpi bookworm ad trixie?
How solwe this problem?
What exact issue do you experience?
Do you have some kind of error message?
Since Dietpi Bulseye, when I install Node Red and the rpi-gpio library, the pins on my rpi zero2 are not configured. This is related to the library, I think it was lgpio, which is installed during the installation of Node Red. The old library that was installed with Bulseye was called rpi-gpio or something similar. I’m almost sure that the problem is from changing the libraries, I even commented on it with someone but I never got to the end. Now I have to solve this problem because I can’t run it on Bulseye forever.
https://dietpi.com/forum/t/node-red-node-pi-gpio-library/24578
I guess you would need to migrate your setup to gpiod, legacy RPi.GPIO / sysfs is not supported anymore
I tried what you sent me but it didn’t work. Can you provide a more detailed description of how to properly install this library?
I am also conducting other correspondence on the matter, please take a look.
https://discourse.nodered.org/t/rpi-gpio-library-not-work-with-dietpi-trixie/100595/13
I don’t know what your exact problem is. Our script installs node-red and python3-rpi-lgpio, which uses already gpiod.
If you have an old flow which relied on rpi-gpio you would need to migrate your flows to use the modern gpiod library.
cd /mnt/dietpi_userdata/node-red
npm remove node-red-node-pi-gpio
npm install node-red-node-pi-gpiod
Then migrate your flows
On rpi zero2 I install Dietpi Trixie and then Node Red I install the node-red-node-pi-gpio library but the pins are not configured correctly. Things started to fail since Bookworm. I found out that it was due to replacing the python3-rpi-lgpio library. With Bullseye things are as they should be, but it is not known until when. That is why I am looking for a solution for Trixie.
Yes, node-red-node-pi-gpio is not supported anymore, as already said.
You need node-red-node-pi-gpiod now.
I did a quick test, installed node red, removed node-red-node-pi-gpio and installed node-red-node-pi-gpiod and also gpiod (via apt)
root@TestPi3B:/mnt/dietpi_userdata/node-red# gpioinfo
gpiochip0 - 54 lines:
line 0: "ID_SDA" input
line 1: "ID_SCL" input
line 2: "GPIO2" input
line 3: "GPIO3" input
line 4: "GPIO4" input
line 5: "GPIO5" input
line 6: "GPIO6" input
line 7: "GPIO7" input
line 8: "GPIO8" input
line 9: "GPIO9" input
line 10: "GPIO10" input
line 11: "GPIO11" input
line 12: "GPIO12" input
line 13: "GPIO13" input
line 14: "GPIO14" input
line 15: "GPIO15" input
line 16: "GPIO16" input
line 17: "GPIO17" input
line 18: "GPIO18" input
line 19: "GPIO19" input
line 20: "GPIO20" input
line 21: "GPIO21" input
line 22: "GPIO22" input
line 23: "GPIO23" input
line 24: "GPIO24" input
line 25: "GPIO25" input
line 26: "GPIO26" input
line 27: "GPIO27" input
line 28: "NC" input
line 29: "LAN_RUN_BOOT" input
line 30: "CTS0" input
line 31: "RTS0" input
line 32: "TXD0" input
line 33: "RXD0" input
line 34: "SD1_CLK" input
line 35: "SD1_CMD" input
line 36: "SD1_DATA0" input
line 37: "SD1_DATA1" input
line 38: "SD1_DATA2" input
line 39: "SD1_DATA3" input
line 40: "PWM0_OUT" input
line 41: "PWM1_OUT" input
line 42: "ETH_CLK" input
line 43: "WIFI_CLK" input
line 44: "SDA0" input
line 45: "SCL0" input
line 46: "SMPS_SCL" input
line 47: "SMPS_SDA" output
line 48: "SD_CLK_R" input
line 49: "SD_CMD_R" input
line 50: "SD_DATA0_R" input
line 51: "SD_DATA1_R" input
line 52: "SD_DATA2_R" input
line 53: "SD_DATA3_R" input
gpiochip1 - 2 lines:
line 0: unnamed output consumer=ACT
line 1: unnamed input
gpiochip2 - 8 lines:
line 0: "BT_ON" output consumer="shutdown"
line 1: "WL_ON" output
line 2: "STATUS_LED" output
line 3: "LAN_RUN" output
line 4: "HDMI_HPD_N" input
line 5: "CAM_GPIO0" output consumer="cam1_regulator"
line 6: "CAM_GPIO1" output
line 7: "PWR_LOW_N" input consumer="PWR"
root@TestPi3B:/mnt/dietpi_userdata/node-red# gpioget --chip gpiochip0 GPIO17 GPIO18
"GPIO17"=inactive "GPIO18"=inactive
I did also a test inside node-red, go to “manage palette” and install node-red-node-pi-gpiod there, you get then the gpiod nodes.
lgpio and gpiod are not the same. When using node-red-node-pi-gpiod, I guess you need:
apt install gpiod
instead of python3-rpi-lgpio.
EDIT: Oh nasty, it does not use the generic gpiod tools and library, but again an RPi-only one: pigpio library
At least available in the RPi repo:
apt install pigpiod
EDIT2: Oh, not available on Trixie anymore
. Deprecated as well in the meantime?
It is available:
https://packages.debian.org/trixie/gpiod
nevermind, I got confused: pigpiod, gpiod, rgpiod
I’m testing it right now, it’s working fine in node-red.
You can directly manipulate it via exec node (/dev/gpiochip*) or if you want a daemon, you can install rgpiod and rgpiod-tools.
Yes, see my edit above. Another RPi-only trap, the name of this plugin is misleading.
node-red-node-pi-gpio with python3-rpi-lgpio seems to be the only way right now, since for whatever reason no one maintains a generic GPIO plugin which uses the generic libgpiod or lgpio libraries.
if node-red-node-pi-gpio with python3-rpi-lgpio does not work, some log messages would be needed to find out why. But better discuss this in the Node-RED forum. This is not a DietPi issue, but an issue that Node-RED plugins all rely on legacy or unmaintained RPi-only GPIO libraries.
Ok so a workaround is to not use the daemon anymore (because you can’t on trixie) and just use an exec node, which uses libgpio / /dev/gpiochip* under the hood (no deamon needed, we use gpioset, gpioget commands etc.). Here is an example flow for node-red:
[
{
"id": "b3f6d9a2d1c0e111",
"type": "tab",
"label": "libgpiod exec demo",
"disabled": false,
"info": "Simple demo: Set GPIO4 high/low using gpiod tools via Exec.\n\n- Requires: gpiod package (gpioset) and coreutils (timeout).\n- Exec node is configured with Command=timeout and 'append msg.payload'.\n- Two injects send 1 or 0, function converts to args for timeout+gpioset.\n- Debug nodes show the constructed command and any stderr.\n\nAdjust chip/line in the function node if needed."
},
{
"id": "a2f08e6b7d6c1a01",
"type": "inject",
"z": "b3f6d9a2d1c0e111",
"name": "GPIO4 = 1 (200ms)",
"props": [
{
"p": "payload"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "1",
"payloadType": "num",
"x": 190,
"y": 140,
"wires": [
[
"c7b2a0c5a44d2b02"
]
]
},
{
"id": "f5c2e0e3c1a9b903",
"type": "inject",
"z": "b3f6d9a2d1c0e111",
"name": "GPIO4 = 0 (200ms)",
"props": [
{
"p": "payload"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "0",
"payloadType": "num",
"x": 190,
"y": 200,
"wires": [
[
"c7b2a0c5a44d2b02"
]
]
},
{
"id": "c7b2a0c5a44d2b02",
"type": "function",
"z": "b3f6d9a2d1c0e111",
"name": "Build timeout+gpioset args (GPIO4)",
"func": "const chip = \"gpiochip0\";\nconst line = \"GPIO4\"; // change to \"GPIO17\" etc.\nconst holdSeconds = 0.2;\n\n// Accept 1/0, true/false, \"1\"/\"0\"\nconst v = (msg.payload === true || msg.payload === 1 || msg.payload === \"1\") ? 1 : 0;\n\n// Exec node is configured with Command=\"timeout\" and 'append msg.payload'\nmsg.payload = `${holdSeconds} gpioset --chip ${chip} ${line}=${v}`;\n\n// For human-readable debug output (doesn't affect exec)\nmsg.command = `timeout ${msg.payload}`;\nmsg.gpio = { chip, line, value: v, holdSeconds };\n\nreturn msg;\n",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 520,
"y": 170,
"wires": [
[
"c2c7a4b0c9b3dd04",
"c0d7ad1f5f7c2e05"
]
]
},
{
"id": "c2c7a4b0c9b3dd04",
"type": "exec",
"z": "b3f6d9a2d1c0e111",
"command": "timeout",
"addpay": true,
"append": "",
"useSpawn": "false",
"timer": "",
"winHide": false,
"name": "Exec: timeout (append msg.payload)",
"x": 820,
"y": 170,
"wires": [
[
"b9a61c7b84d80c06"
],
[
"e5ac333a4d8e1607"
],
[
"a64d97d5d7b0be08"
]
]
},
{
"id": "c0d7ad1f5f7c2e05",
"type": "debug",
"z": "b3f6d9a2d1c0e111",
"name": "Debug: built command",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "command",
"targetType": "msg",
"x": 820,
"y": 240,
"wires": []
},
{
"id": "b9a61c7b84d80c06",
"type": "debug",
"z": "b3f6d9a2d1c0e111",
"name": "stdout (usually empty)",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"x": 1060,
"y": 140,
"wires": []
},
{
"id": "e5ac333a4d8e1607",
"type": "debug",
"z": "b3f6d9a2d1c0e111",
"name": "stderr (errors show here)",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": true,
"complete": "payload",
"targetType": "msg",
"x": 1070,
"y": 170,
"wires": []
},
{
"id": "a64d97d5d7b0be08",
"type": "debug",
"z": "b3f6d9a2d1c0e111",
"name": "return code (may be undefined)",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "rc",
"targetType": "msg",
"x": 1090,
"y": 200,
"wires": []
}
]

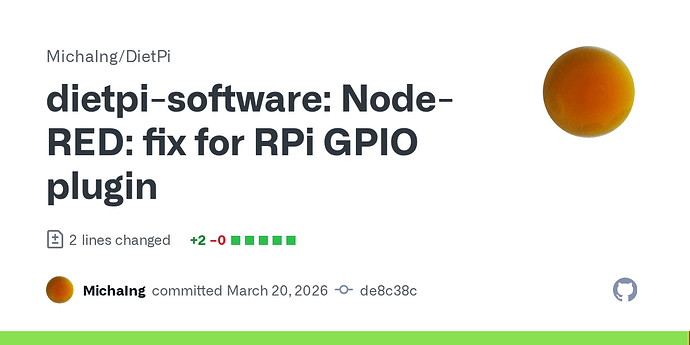

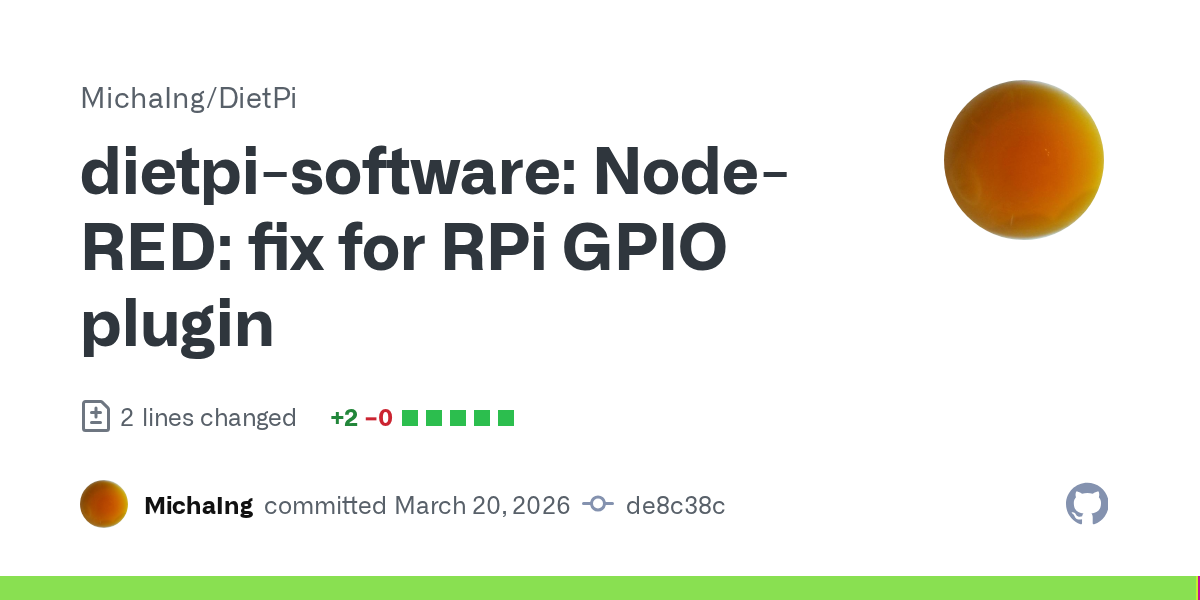

This should fix it:
Will be applied also during next DietPi update.
Thank you.
