Hello.
I installed “Mopidy: web interface music & radio player” which I can access now as documented with “http://dietpi:6680/musicbox_webclient”.
But although i´m using the expansion board with 3.5mm jack i can´t hear any sound.

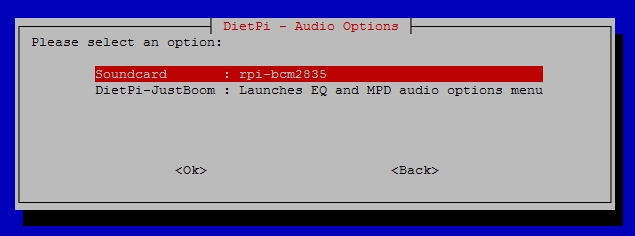

I have configured the sound like this:

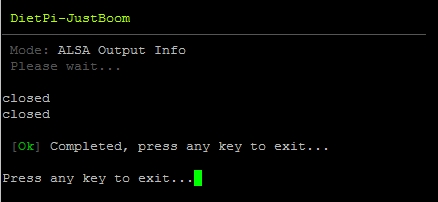

The option “ALSA Output Info : View info on current ALSA playback stream” delivers:
System: OrangePi Zero 1 (H2+/512MB) with Expansion Board and DietPi v145 Jessie (3.4.113-sun8i (SMP) armv7l)
Cheers,
Lelo
Hey there~
Simplest check first. Is the volume up? Check with :
alsamixer
When the volume is up and you have selected the right card (switch cards with F6); show what
cat /proc/asound/cards
Is telling us.
Selecting “Card: audiocodec” and enterinfg your command states:
cat /proc/asound/cards
0 [audiocodec ]: audiocodec - audiocodec
audiocodec
1 [sndhdmi ]: sndhdmi - sndhdmi
sndhdmi
If i change to “sndhdmi” (the board hs NO hdmi-hardware AFAIC)
null
<hdmi audio format Function>
I can change from “null” to:
pcm / AC3 / MPEG1 / MP3 / MPEG2 / AAC / DTS / ATRAC / One_BIT_AUDIO / DOLBY_DIGITAL_PLUS / DTS_HD / MAT / WMAPRO
This is what “alsamixer” looks like on “default” (at “chip” there is no entry):
lqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqq AlsaMixer v1.0.28 qqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqk
x Card: audiocodec F1: Help x
x Chip: F2: System information x
x View: F3:[Playback] F4: Capture F5: All F6: Select sound card x
x Item: Lineout volume control Esc: Exit x
x x
x lqqk lqqk lqqk lqqk lqqk x
x x x x x x x x x x x x
x x x x x x x x x x x x
x xaax x x x x x x x x >
x xaax x x x x x x x x >
x xaax x x x x x x x x >
x xaax x x x x xaax x x >
x xaax xaax xaax xaax xaax >
x xaax xaax xaax xaax xaax >
x xaax xaax xaax xaax xaax >
x xaax xaax xaax xaax xaax x
x xaax xaax xaax xaax xaax x
x mqqj mqqj lqqk lqqk lqqk lqqk mqqj mqqj mqqj x
x xMMx xMMx xMMx xOOx x
x mqqj mqqj mqqj mqqj x
x 84 43 43 57 43 x
x <Lineout >ADC inpu Audio ad Audio ad Audio li Audio li LINEIN_G MIC1 boo MIC1_G b x
mqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqj
When i go to to “dietpi-config” and further to the audio-settings i see “rpi-bcm2835”, which is RasPi-hardware (i think).
Is DietPi limitted to RasPi audio only? But the Extension-Board doesn´t seem to have an extra soundchip on it.
I had the same problem: in alsamixer I had found a few voices that were muted (MM). Unmuting those, I magically started to hear sound.
HTH
What the sound quality like?
Not bad, actually, in my opinion. It’s nothing like hi-fi, but for a casual use it’s good enough.
Might be worth posting a bug on git for this. I had a similar issue a few versions ago and it was fixed in the next version.
Perhaps the fix slipped out…
