OrangePi 3 LTS - MacOS Samba Share problem

Troubleshooting
1

Hello guys, ı have a OrangePi 3 LTS device and latest DietPi 8.12.1
Everything is adjusted by me, but i have a small problem on Samba share
I installed samba via software center

This is my smb.conf settings

cat /etc/samba/smb.conf
[global]

        workgroup = WORKGROUP
        server string = %h server
        dns proxy = no
        log file = /var/log/samba/log.%m
        max log size = 1000
        syslog only = no
        syslog = 0

        panic action = /usr/share/samba/panic-action %d

        security = user
        encrypt passwords = true
        passdb backend = tdbsam
        obey pam restrictions = yes
        unix password sync = yes

        passwd program = /usr/bin/passwd %u
        passwd chat = *Enter\snew\s*\spassword:* %n\n *Retype\snew\s*\spassword:* %n\n *password\supdated\ssuccessfully* .
        pam password change = yes
        map to guest = bad user

        load printers = no
        printcap name = /dev/null
        disable spoolss = yes

        max xmit = 65535
        socket options = TCP_NODELAY IPTOS_LOWDELAY
        read raw = yes
        write raw = yes
        max connections = 65535
        max open files = 65535

        min protocol = SMB2_10
        max protocol = SMB3_11
        client min protocol = SMB2_10
        client max protocol = SMB3_11


[DietPi User Data]
        comment = DietPi Share
        path = /mnt/dietpi_userdata
        browseable = yes
        create mask = 0664
        directory mask = 0775
        valid users = dietpi root
        force user = root
        writeable = yes

[DietPi Root]
        comment = DietPi Root Folder Share
        path = /
        browseable = yes
        create mask = 0775
        directory mask = 0775
        valid users = dietpi root
        force user = root
        writeable = yes
[Web Dosyaları]
        comment = DietPi HTTP Web Share
        path = /var/www
        browseable = yes
        create mask = 0775
        directory mask = 0775
        valid users = dietpi root
        force user = root
        writeable = yes
[32 GB SD]
        comment = 32 GB SD
        path = /mnt/32_GB_SD
        browseable = yes
        create mask = 0775
        directory mask = 0775
        valid users = dietpi root
        force user = root
        writeable = yes
[4 TB HDD]
        comment = 4 TB HDD
        path = /mnt/4_TB_HDD
        browseable = yes
        create mask = 0775
        directory mask = 0775
        valid users = dietpi root
        force user = root
        writeable = yes

I have a 32 gb SD card on orange pi 3 lts and 4 TB HDD attached via usb 3.0

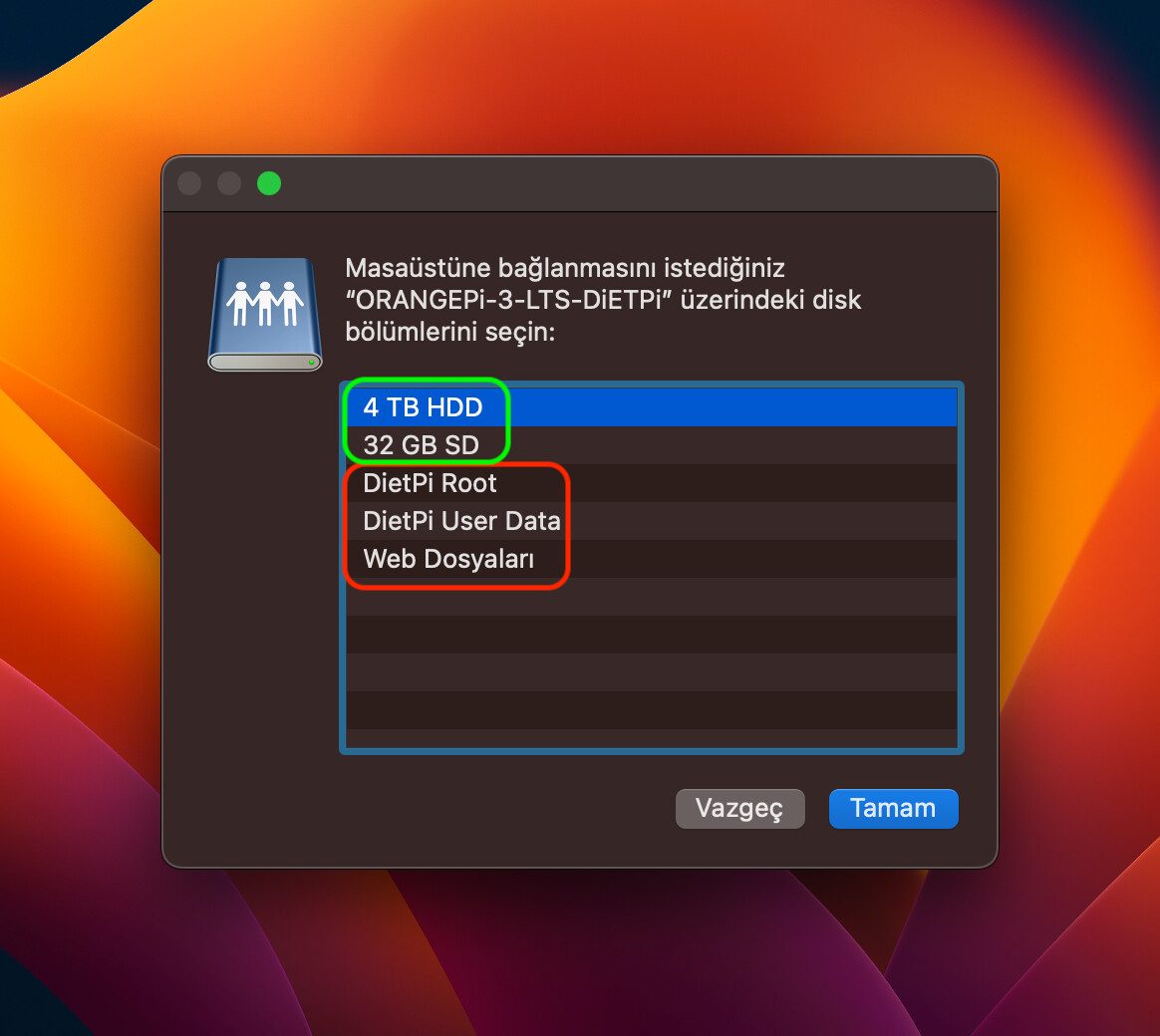

ı’m using 2 MacOS device both of them are not connected red one’s

CleanShot 2022-12-21 at 13.38.39@2x
CleanShot 2022-12-21 at 13.38.39@2x1164×1040 141 KB

when i click on the red ones it gives a pop up like this

In comment please look the second message

I am connected via smb://IP with root user
Windows and android phone is connected via native file manager with red one’s

---- Additional info: when i connect to my router via ethernet I can get 80-90 mb/s (usb 3.0 hdd speed limit) speed over samba file transfer, but when I connect with wifi (1300mbps or sometimes 866mbps on at near router) I see maximum transfer rates of 10-13 mb

Why is this caused?

2

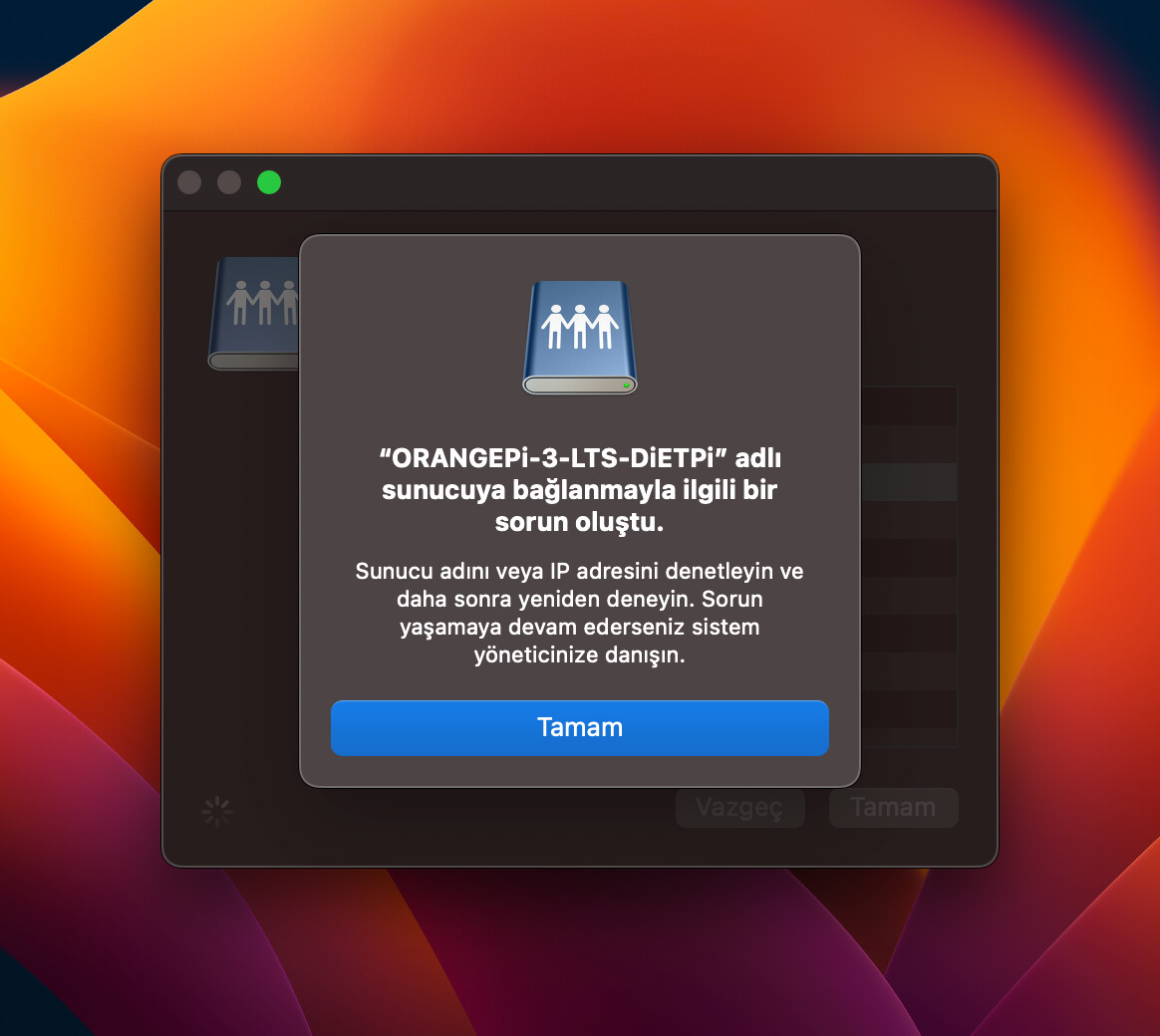

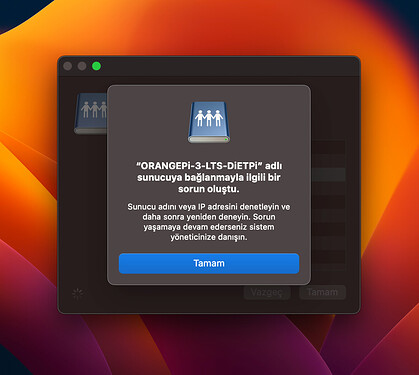

Translated version of text: There was a problem connecting to the server named “ORANGEPi-3-LTS-DiETPi”.
Check the server name or IP address and try again later. If you continue to have problems, consult your system administrator.

CleanShot 2022-12-21 at 13.38.46@2x
CleanShot 2022-12-21 at 13.38.46@2x1164×1040 133 KB

3

Probably poor wifi connection. Or does the wifi share the same bus with the USB ports?

4

Actually it is not necessary (OrangePi is also connected 1GBPS port on my router via eth. cable)

My big problem is, i can’t access / (root filesystem) by using smb on macos

5

are you able to access at least one of the SAMBA shares? Or is it impacting all shares?

6

4 TB HDD and 32 GB SD (green box) is accessible, red box are not accessible from MacOS (also accessible from windows and android native file manager via smb)

7

Just a stupid question and unrelated to your issue. Why are you creating so many shares? I mean, you try to export/share the root directory /, which would give access to all the other folder you like to share :slight_smile:

Unfortunately, I don’t have a macOS system where I could test on. I just have an old iPhone SE. Maybe I will reactivate it for testing.

8

I’m just doing it to reduce a few clicks (also in the future I will give specific permissions to some folders (like root) for some users.) :smiley: because I will mount different folders on different devices

If there was a problem with samba sharing, it would not connect from windows and android devices.
I think there is a problem with macOS smb sharing, but when I try it from 2 different computers, I see that it still does not work.

9

Same problem is still going, please someone can help me ??

10

Did you created your own Dietpi for the Orange Pi 3 LTS?

11

Yes, i created.

1 Like
12

Great, congrats!

BTW, perhaps you should consider share the image since there are no other images for Orange Pi on the website other than the Orange Pi 5

13

Oh I misunderstood, I did a little research, there used to be a script for dietpi installation on debian, now it doesn’t appear.

14

No no…you created a stock image from debian on OPi3

You then take the card, read it with something like winimager so others may just download it and load it straight on a card, however people learn alot by building their stock image

Make sure you back up the card asap…this way you don’t have to do a full rebuild from scratch if something happens

1 Like
15

still there :wink: Supported hardware - DietPi.com Docs

1 Like
