Need help with mosquitto ssl self signed certificate

[temp]

Hello,

I installed mosquitto on my dietpi and now want to use a ssl secured connection.

Therefore I created a self-signed certiificate with this

# Als root
sudo -i

# Variablen für Pfade zu den Zertifikatsordnern, damit die Zeilen kurz bleiben.
CA_PATH=/etc/mosquitto/ca_certificates

openssl genrsa -des3 -out ${CA_PATH}/ca.key 2048

openssl req -new -x509 -days 1826 -key ${CA_PATH}/ca.key -out ${CA_PATH}/ca.crt

I used this configuration

Country Name (2 letter code) [AU]: DE
Common Name (e.g. server FQDN or YOUR name) []:RootCA

and then I created Mosquitto-Broker-certificate

by

# Als root
sudo -i

# Variablen für Pfade zu den Zertifikatsordnern, damit die Zeilen kurz bleiben.
CA_PATH=/etc/mosquitto/ca_certificates
CERT_PATH=/etc/mosquitto/certs

openssl genrsa -out ${CERT_PATH}/mosquitto.key 2048

openssl req -new -out ${CERT_PATH}/mosquitto.csr -key ${CERT_PATH}/mosquitto.key

openssl x509 -req -in ${CERT_PATH}/mosquitto.csr -CA ${CA_PATH}/ca.crt -CAkey ${CA_PATH}/ca.key -CAcreateserial -out ${CERT_PATH}/mosquitto.crt -days 360

I used as FQDN

Common Name (e.g. server FQDN or YOUR name) []: 192.168.178.26

192.168.178.26 is my IP address of my dietpi

than I created

# Als root
sudo -i

# Variablen für Pfade zu den Zertifikatsordnern, damit die Zeilen kurz bleiben.
CA_PATH=/etc/mosquitto/ca_certificates
CERT_PATH=/etc/mosquitto/certs

openssl genrsa -out ${CERT_PATH}/client_heizung.key 2048
openssl req -new -out ${CERT_PATH}/client_heizung.csr -key ${CERT_PATH}/client_heizung.key
openssl x509 -req -in ${CERT_PATH}/client_heizung.csr -CA ${CA_PATH}/ca.crt -CAkey ${CA_PATH}/ca.key -CAcreateserial -out ${CERT_PATH}/client_heizung.crt -days 360

I added to my mosquitto configuration

listener 8883

certfile /etc/mosquitto/certs/mosquitto.crt
keyfile /etc/mosquitto/certs/mosquitto.key
cafile /etc/mosquitto/ca_certificates/ca.crt

require_certificate true

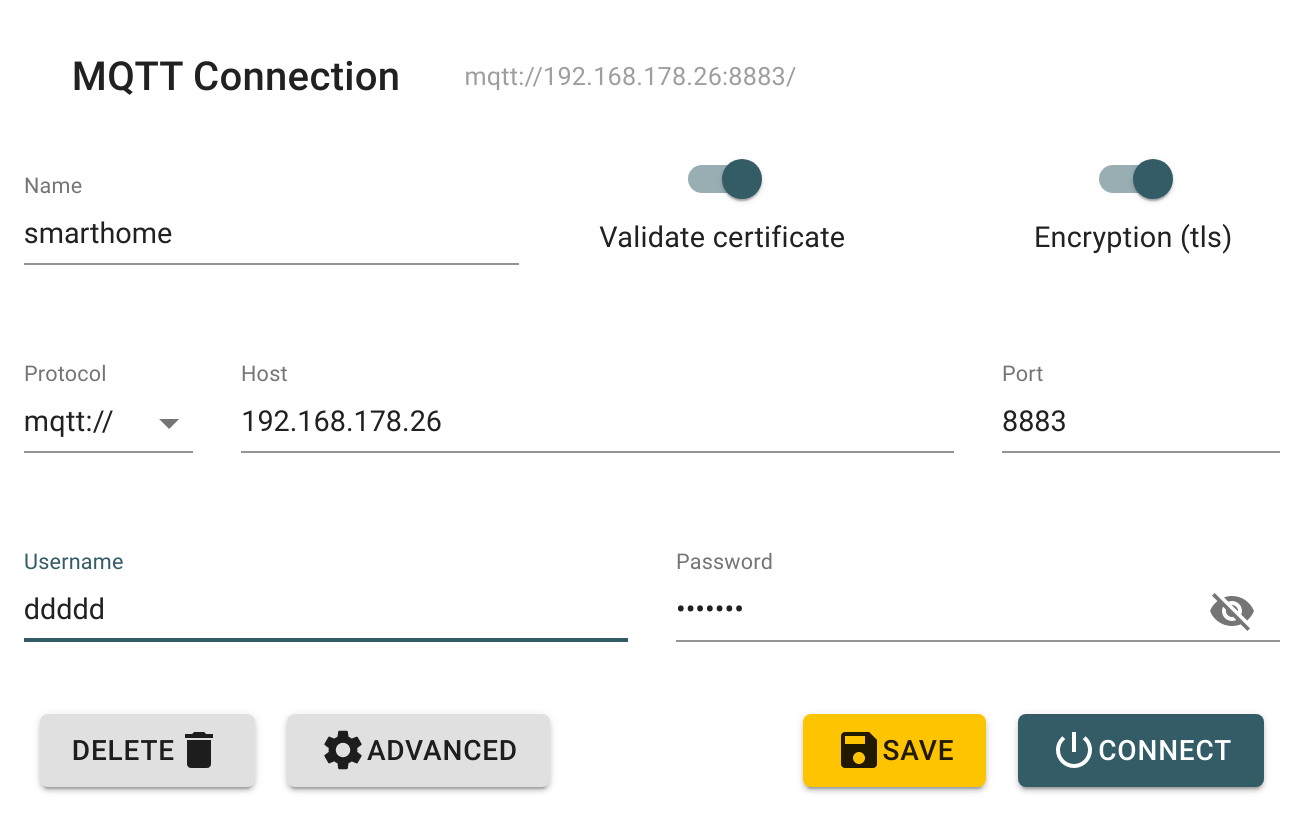

But when I try to connect to my mosquitto server with this certificates

I get the error

What is wrong?

[Jappe]

Normally SSL certifiates secure domains and not IPs.
And why do you want to have SSL inside your LAN? You used a private IP and not a public one.

But nevertheless:

@temp

Common Name (e.g. server FQDN or YOUR name) []: 192.168.178.26

Probably you have to put it in quotes, bc it expects a string/domain and not an IP.
A FQDN would be something like sub.domain.tld

[temp]

Solved by using the hostname
