Feature Request: Add monitoring of USB HDD to RPi Monitor.

[rmarijnissen]

Hello All,

Today i tried to add the usbhdd.conf.

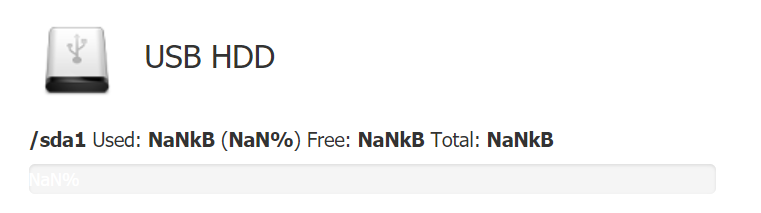

I works but i keep getting NANKB for used, free and total

Below the conf file.

static.40.name=sda1_total
static.40.source=df -t ext4
static.40.regexp=sda1\s+(\d+)
static.40.postprocess=$1/1024

dynamic.44.name=sda1_used
dynamic.44.source=df -t ext4
dynamic.44.regexp=sda1\s+\d+\s+(\d+)
dynamic.44.postprocess=$1/1024
dynamic.44.rrd=GAUGE

web.status.1.content.9.name=USB HDD
web.status.1.content.9.line.1="<b>/sda1</b> Used: <b>"+KMG(data.sda1_used,'M')+"</b> (<b>"+Percent(data.s$
web.status.1.content.9.line.2=ProgressBar(data.sda1_used,data.sda1_total)

web.statistics.1.content.9.name=USB HDD
web.statistics.1.content.9.graph.1=sda1_total
web.statistics.1.content.9.graph.2=sda1_used
web.statistics.1.content.9.ds_graph_options.sda1_total.label=USB HDD total space (MB)
web.statistics.1.content.9.ds_graph_options.sda1_total.color="#FF7777"
web.statistics.1.content.9.ds_graph_options.sda1_used.label=USB HDD used space (MB)
web.statistics.1.content.9.ds_graph_options.sda1_used.lines={ fill: true }
web.statistics.1.content.9.ds_graph_options.sda1_used.color="#7777FF"

Any help would be welcome!
p.s. i run rpimonitor in docker

[Joulinar]

Hi,

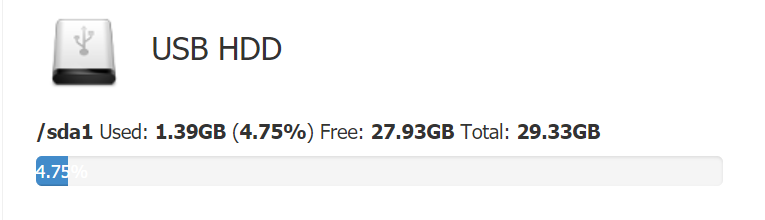

I was playing with it as well. Indeed the divice is not shown correctly at the beginning

but it solved as soon as I accessed the drive.

Looks like RPi-Monitor can show mounted device only. And by default DietPi is mounting USB devices if they are accessed first time. They are not mounted on boot automatically.

AHH and on Docker you might need to map the device to have it available inside the container. GitHub - michaelmiklis/docker-rpi-monitor: RPI Monitor from RPi-Experiences implemented in a Docker Container
