Connect Broadband to Raspberry pi b model

Troubleshooting
1

Creating a bug report/issue

I have searched the existing open and closed issues

Required Information

  • DietPi version | cat /boot/dietpi/.version
  • Distro version | echo $G_DISTRO_NAME $G_RASPBIAN
  • Kernel version | uname --all
  • Architecture | dpkg --print-architecture
  • SBC model | echo $G_HW_MODEL_NAME or (EG: RPi3)
  • Power supply used | (EG: 5V 1A RAVpower)
  • SD card used | (EG: SanDisk ultra)

Additional Information (if applicable)

  • Software title | (EG: Nextcloud)
  • Was the software title installed freshly or updated/migrated?
  • Can this issue be replicated on a fresh installation of DietPi?
    ← If you sent a “dietpi-bugreport”, please paste the ID here →
  • Bug report ID | echo $G_HW_UUID

Steps to reproduce

  1. …
  2. …

Expected behaviour

  • …

Actual behaviour

  • …

Extra details

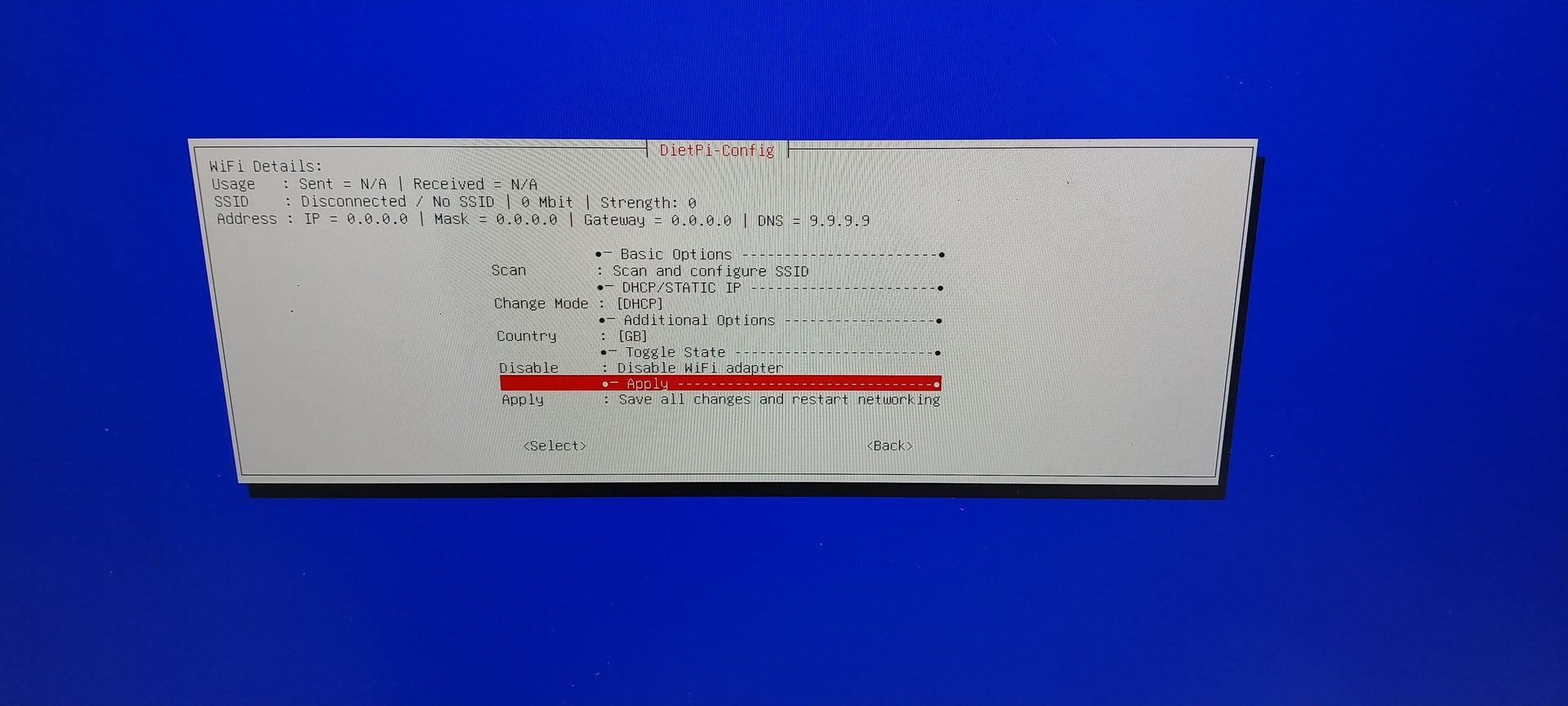

  • …Whenever I try and connect to the internet to the computer nothing seems to happen so their any guide or tips which can help me here?

unnamed (5)
unnamed (5)1920×864 204 KB

2

Did you scan for WiFi networks?

3

Yes I did try, but nothing seems to be coming up so far.

4

pls share the system details. You missed to fill the trouble shooting template.

5

I am not really sure what you mean I give you the Raspberry Pi model b and then I download the recommended software according to Raspberry Pi Imager software.

Would be simply better if I go back to Raspberrry Pi own OS since I found whenever I try with this OS it never worked it just gives me errors all the time?

6

if you have some errors, share them with us

I mean the template you ignored.

  • DietPi version | cat /boot/dietpi/.version
  • Distro version | echo $G_DISTRO_NAME $G_RASPBIAN
  • Kernel version | uname --all
  • Architecture | dpkg --print-architecture
  • SBC model | echo $G_HW_MODEL_NAME or (EG: RPi3)

This is simply copy / past of the commands.

7

I do assume you flashed our RPi 1 Trixie image. Since the RPi 1 has no onboard WiFi, which USB WiFi adapter do you use?

Do I understand it right, that scanning for WiFi networks returns an empty list? Does this command not return anything either?

iw dev wlan0 scan

If so, please check for kernel errors:

dmesg -l 0,1,2,3

And do I understand it right that the same WiFi adapter on the same RPi 1 works with RPi OS? If so, does the above command then return something there? We use the same kernel and firmware, and iw really is an absolute low-level tool, so it would be strange if that was not able to detect your SSID(s) somehow, while NetworkManager (the high-level network tool on RPi OS) is. But to compare (on RPi OS):thinking:

nmcli device wifi list

Both tools use the same nl80211 kernel interface, hence should produce identical lists.
