Can't connect network with static IP

[miloose]

HI,

I’m using dietpi on an Intel Nuc.

I was using it via DHCP for my IP, I used No-Ip for dyndns and it’s work fine.

But when I try to change to static IP via detpi-config, my nuc can’t access outside network.
So I can’t configure dyndns, can’t use my nextcloud, etc …

On my router, I have activate the dmz to be sure that is not port forwarding problem, but nothing happens.

I want / have to be on static IP because I have to change the dns for my dietpi nuc (torrent download are blocked by my provider).

Someone have an idea ?

[Jappe]

Plz deactivate the DMZ, it’s not necessary and can be quite dangerous if you don’t know what you are doing.

@miloose

Someone have an idea ?

Make sure the IP is in the correct range, what are the DHCP and subnet settings in the router?

And can you show the ouput of ip a when you switched to static IP?

[Joulinar]

Best to show ip a for both STATIC and DHCP

[miloose]

HI,
Thanks to try to help me.

1. Here’s command IP A with DHCP :

root@DietPi:~# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group defaul                                                                                                         t qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP grou                                                                                                         p default qlen 1000
    link/ether f4:4d:30:63:24:26 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.58/24 brd 192.168.1.255 scope global dynamic eth0
       valid_lft 75685sec preferred_lft 75685sec
    inet6 2a02:8429:807d:c301:f64d:30ff:fe63:2426/64 scope global dynamic mngtmp                                                                                                         addr
       valid_lft 604608sec preferred_lft 604608sec
    inet6 fe80::f64d:30ff:fe63:2426/64 scope link
       valid_lft forever preferred_lft forever
3: wlan0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qle                                                                                                         n 1000
    link/ether 00:c2:c6:eb:ea:2e brd ff:ff:ff:ff:ff:ff

2. Here’s IP A command withe static

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether f4:4d:30:63:24:26 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.58/24 brd 192.168.1.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 2a02:8429:807d:c301:f64d:30ff:fe63:2426/64 scope global dynamic mngtmpaddr
       valid_lft 604794sec preferred_lft 604794sec
    inet6 fe80::f64d:30ff:fe63:2426/64 scope link
       valid_lft forever preferred_lft forever
3: wlan0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 00:c2:c6:eb:ea:2e brd ff:ff:ff:ff:ff:ff

3. Here’s a screen capture of subnet settings :

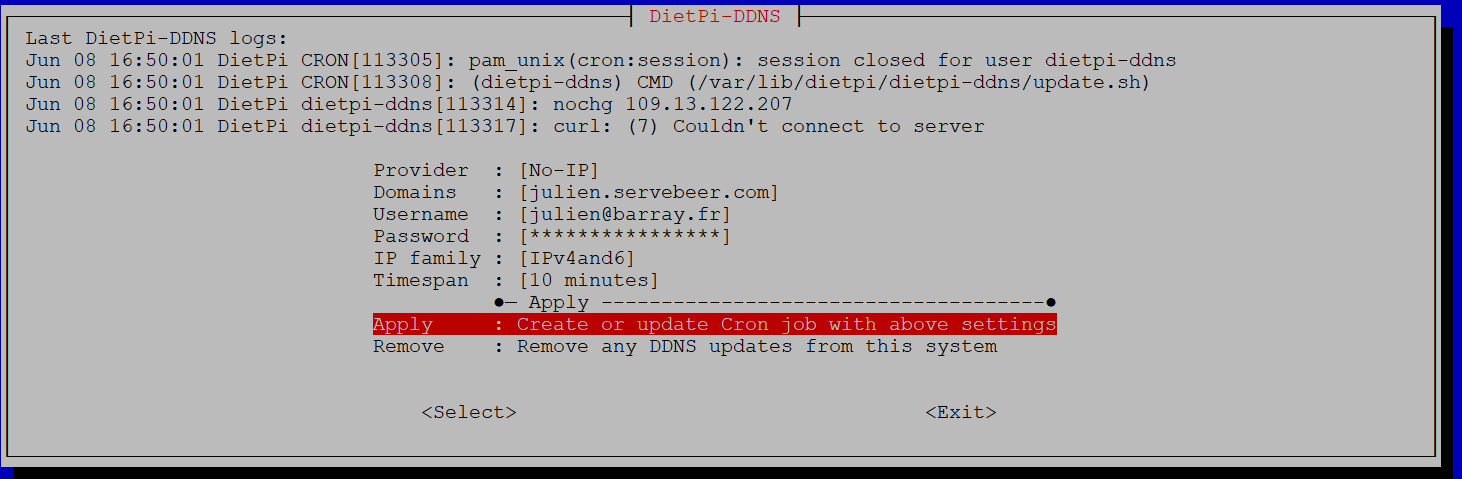

4. When I try to use No-IP :
   Before applying settings :




[ INFO ] DietPi-DDNS | Preparing unprivileged DietPi-DDNS UNIX group ...
[  OK  ] DietPi-DDNS | groupmod -p ! dietpi-ddns
[ INFO ] DietPi-DDNS | Preparing unprivileged DietPi-DDNS UNIX user ...
[  OK  ] DietPi-DDNS | usermod -g dietpi-ddns -G  -d /nonexistent -s /usr/sbin/nologin -p ! dietpi-ddns
[ INFO ] DietPi-DDNS | Testing DDNS update ...
[FAILED] DietPi-DDNS | DDNS update test failed, please check your input: curl: (7) Failed to connect to dynupdate.noip.com port 443 after 2090 ms: Couldn't connect to server

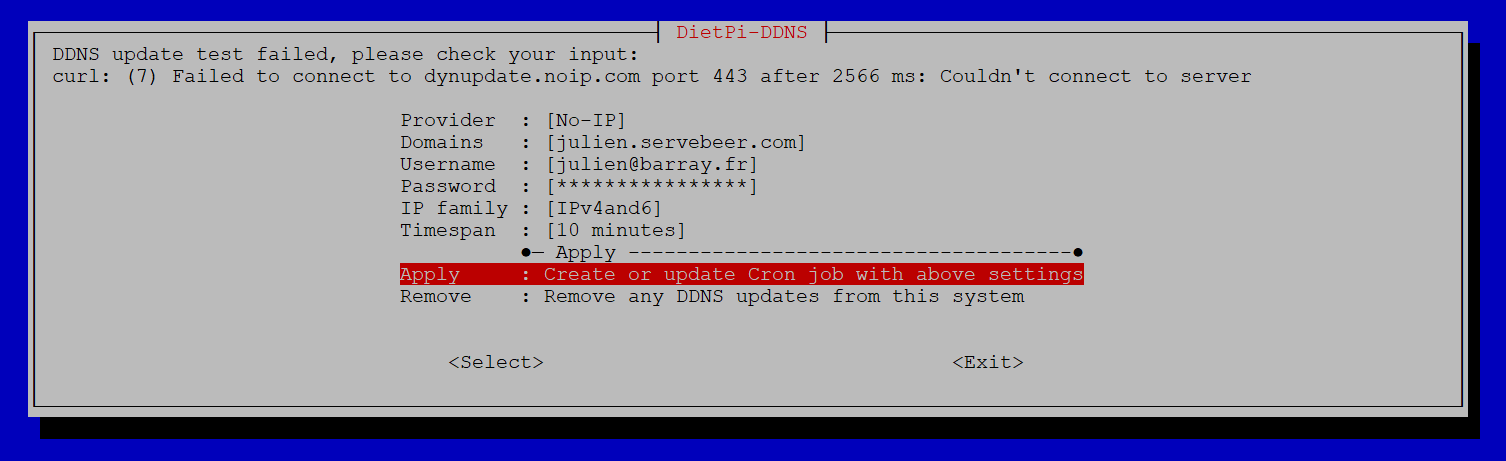

And the result :

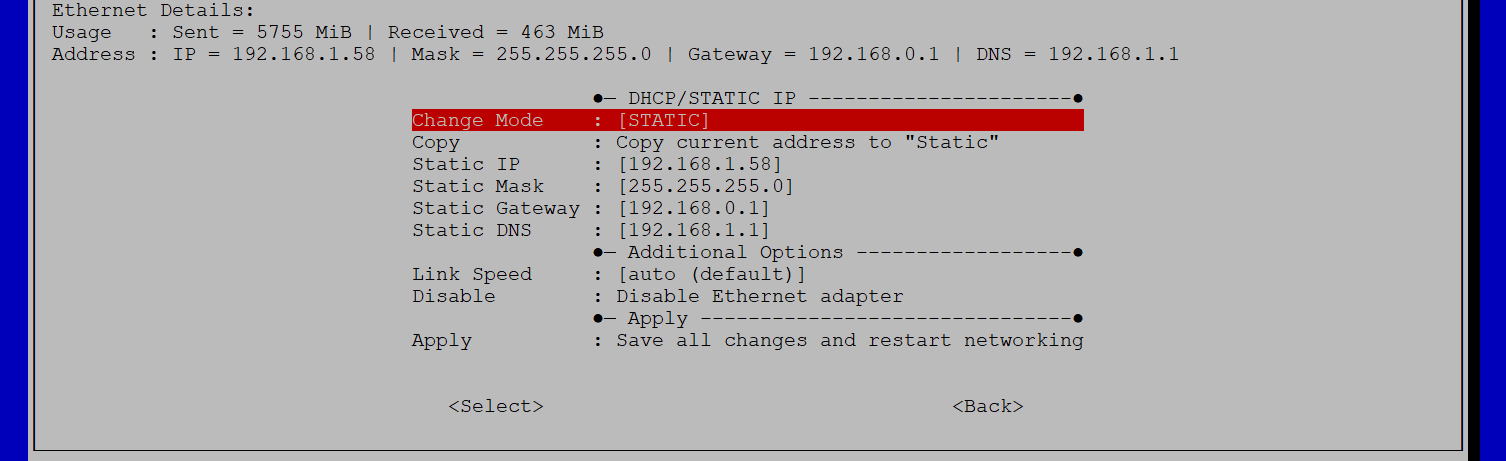

Here’s Static IP config in dietpi-config :

Thanks for your help.

[Joulinar]

On STATIC, the gateway doesn’t seems to be correct. It’s 192.168.0.1 but I guess it would need to be 192.168.1.1

[miloose]

@Joulinar

pas

Hi,
Yes it’s works.
Thank you very much.
You have good eyes, I didn’t saw it.
Thank you again.
