Automated installation failing on "connection test"

djjerdog · 16 August 2016 05:16

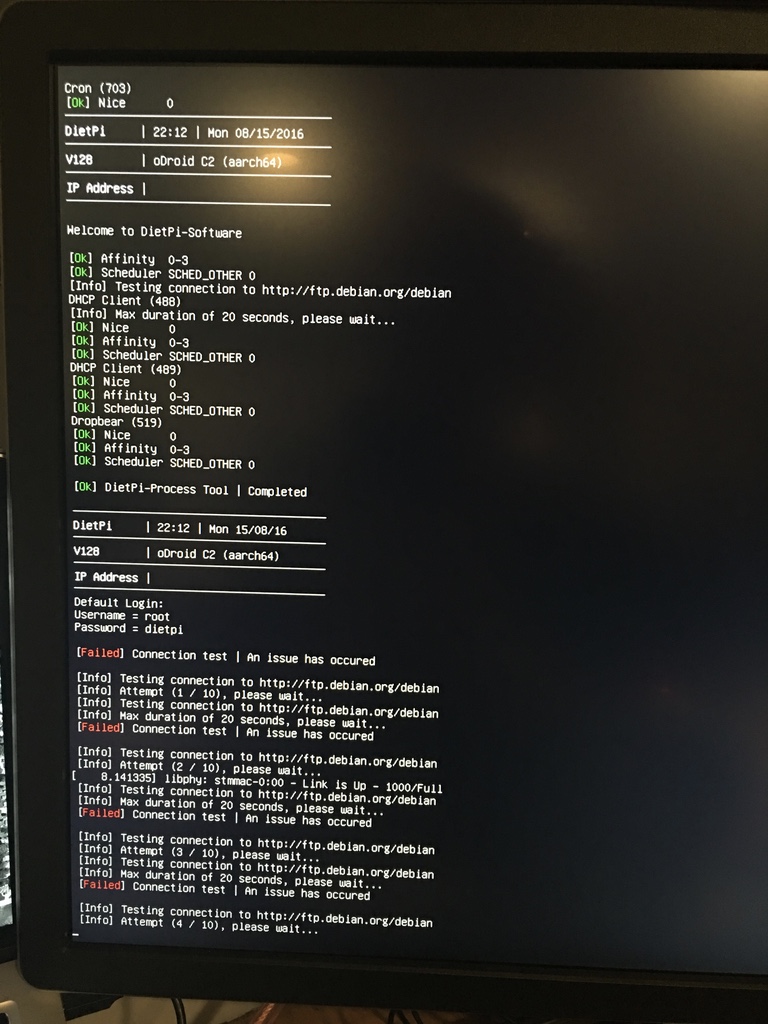

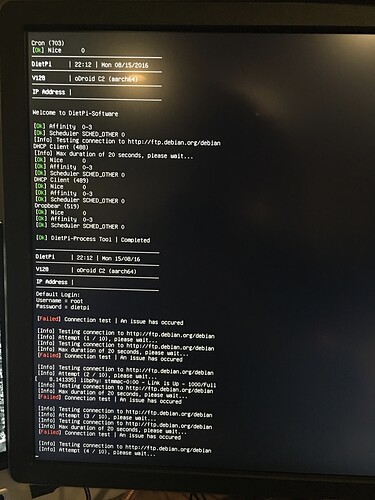

I’m attempting to create a headless install by enabling the Automation Options in dietpi.txt. However the install halts during “DietPi-Software” due to repeated failed “connection test” attempts.

“ifconfig” shows eth0 is up but has not obtained an IP, if I run “dhclient eth0” the interface is able to obtain an IP, at that point I can “exit” and it will continue with the rest of the install. Also, rebooting will obtain an IP and the install will finish. Any ideas what the issue might be?

Hardware: Odroid-C2

k-plan · 16 August 2016 10:28

Hi,

Might be, your DHCP Server on LAN react to slow or your LAN performance is bad (packet loss).
DHCP Server is a …?

cu
k-plan

Fourdee · 16 August 2016 11:28

Could also be https://github.com/Fourdee/DietPi/blob/master/dietpi/boot#L171. We dont currently wait for dhclient to terminate. Maybe preventing it from restarting cleanly.

I’ve modified the boot script to fix the above, and debug a little. Can you:

Write a fresh DietPi image
Download this file, and place into /boot/dietpi/boot
Set automation settings and power on.

Can you also upload your dietpi.txt aswell please, remove any keys/pw’s?

k-plan · 16 August 2016 12:09

Hi,

Yes, killall -w can as well do the trick!

C2 are booting and working really so dammed fast!

Fourdee · 16 August 2016 18:55

As you probably know, the C2+EMMC is a beast combination. I have one powered up every day for DietPi testing and coding. I couldn’t live without one now. When I power up a RPi 3, even with the SD card overclock, it feels like a snail, everytime.

djjerdog · 18 August 2016 03:00

Success! I burned a new image with the modified boot file and while it did still fail the connection test 3 or 4 times it then past and continued on.

I notice the connection test says “Max duration of 20 seconds…” but it only seems to wait maybe 1-2 seconds, is this how it is supposed to perform or is that something also to do with the speed of the C2?

Thank you!

Fourdee · 18 August 2016 11:11

Hi,

Thanks for the report.
Yep, it shouldn’t take 1-2 seconds, could be a bug in the code, i’ll take a look.

tohax · 16 September 2016 12:07

I have the same error on raspberry pi model B on first boot. Wifi adapter - asus usb n13. Dietpi v130. On previous versions all was working fine. What do i need to do?

k-plan · 16 September 2016 16:01

Hey,

what is output of:

ping 8.8.4.4

ping heise.de

ip a

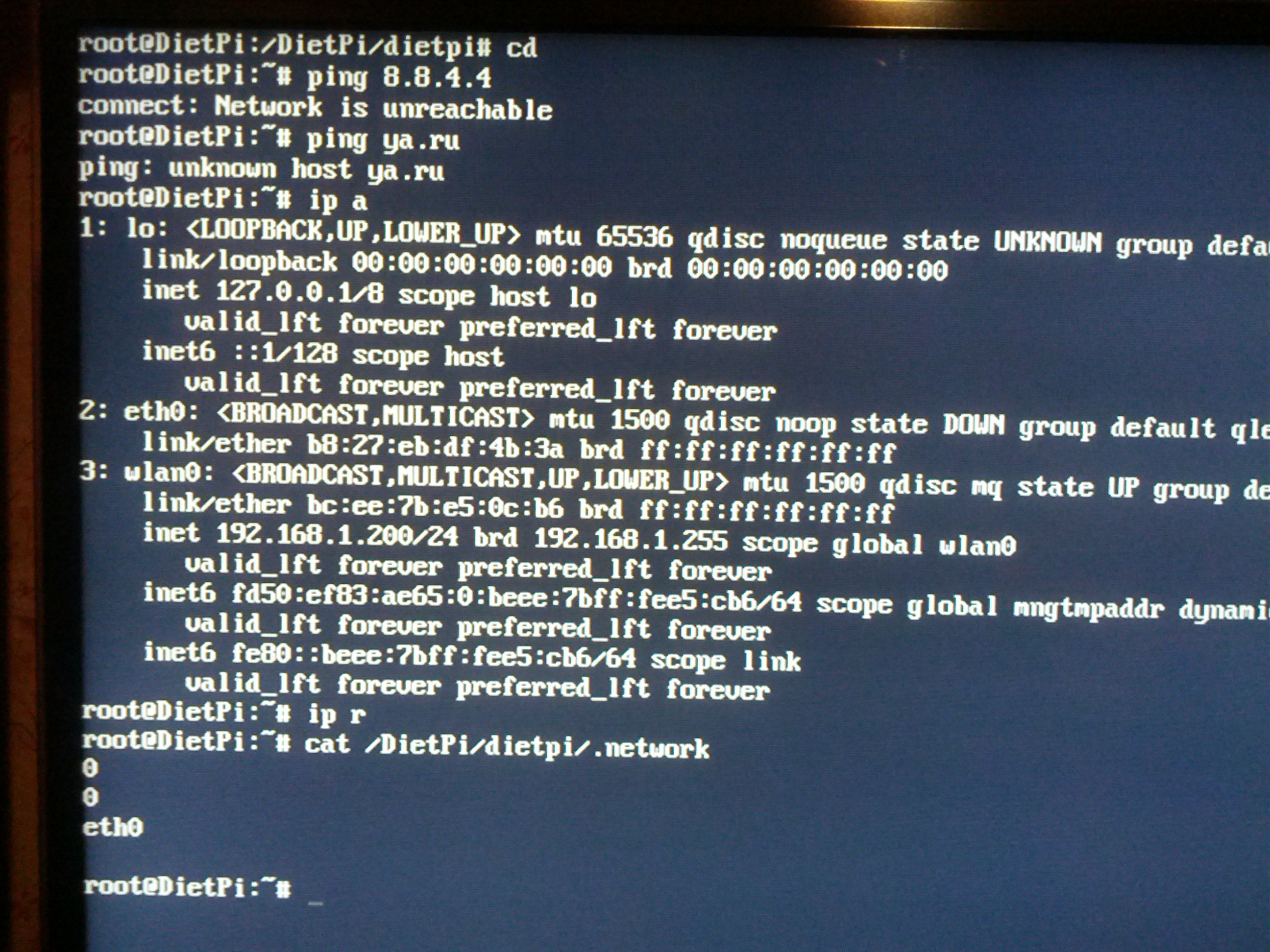

tohax · 16 September 2016 18:54

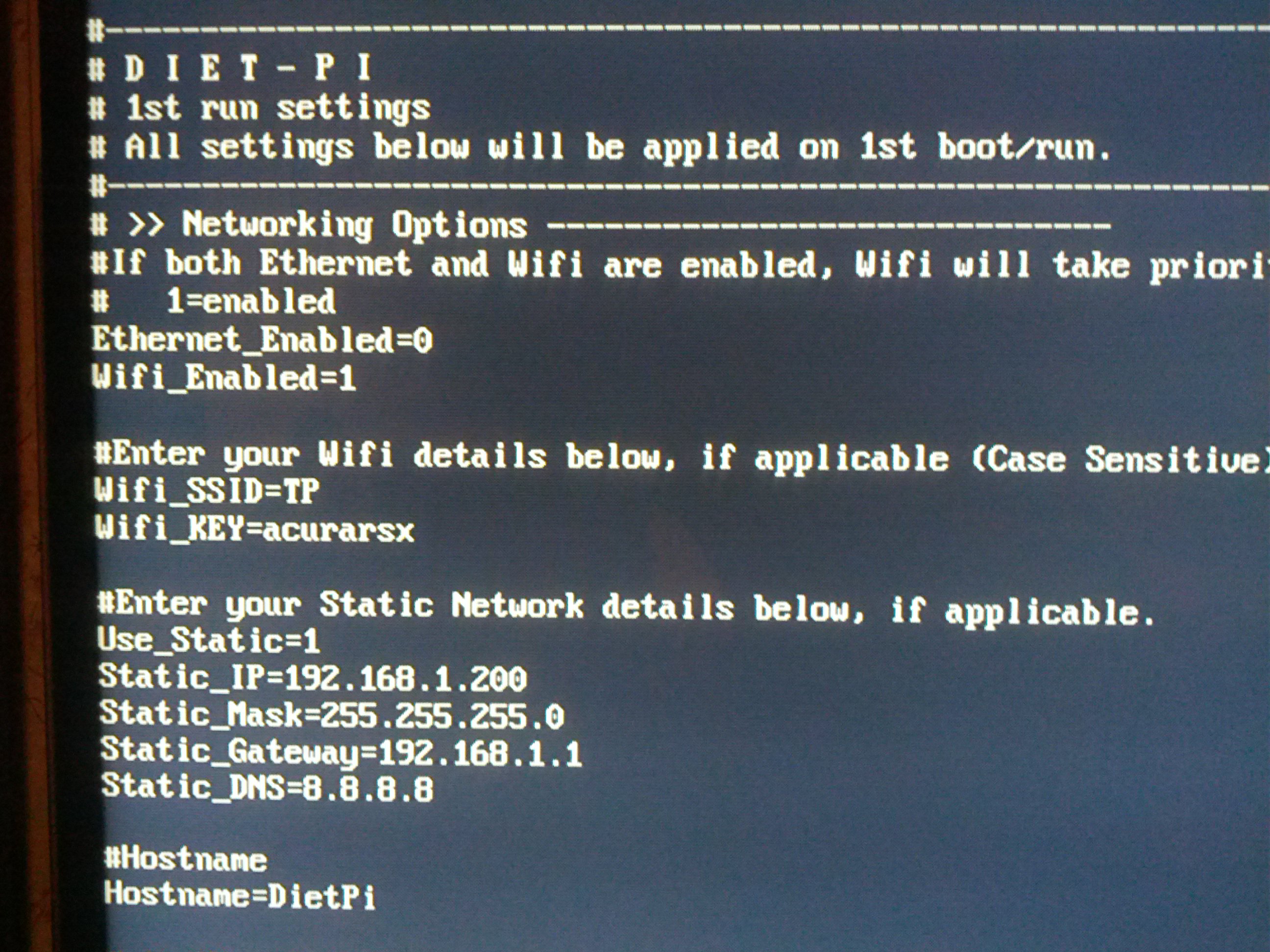

Ehternet disabled in dietpi.txt, but it exists in .network file, and no wlan0 string.

k-plan · 17 September 2016 12:46

Hi,

which image did you use? DietPi_RPi-armv6-(Jessie) or DietPi_RPi-armv6-(Wheezy) ?

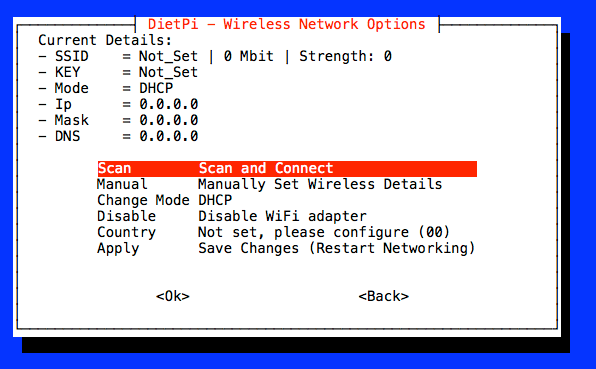

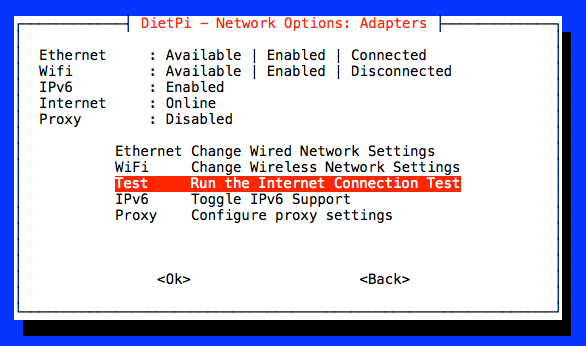

Whats did Network Options: Adapters shows in dietpi-config ?

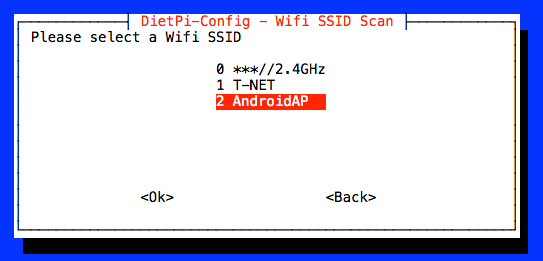

What happens, when you hit “Scan and connect”

On which wifi channel runs your accesspoint/wifi-router ?

WiFi country code is set ?

Output from:

lsusb

cat /etc/network/interfaces

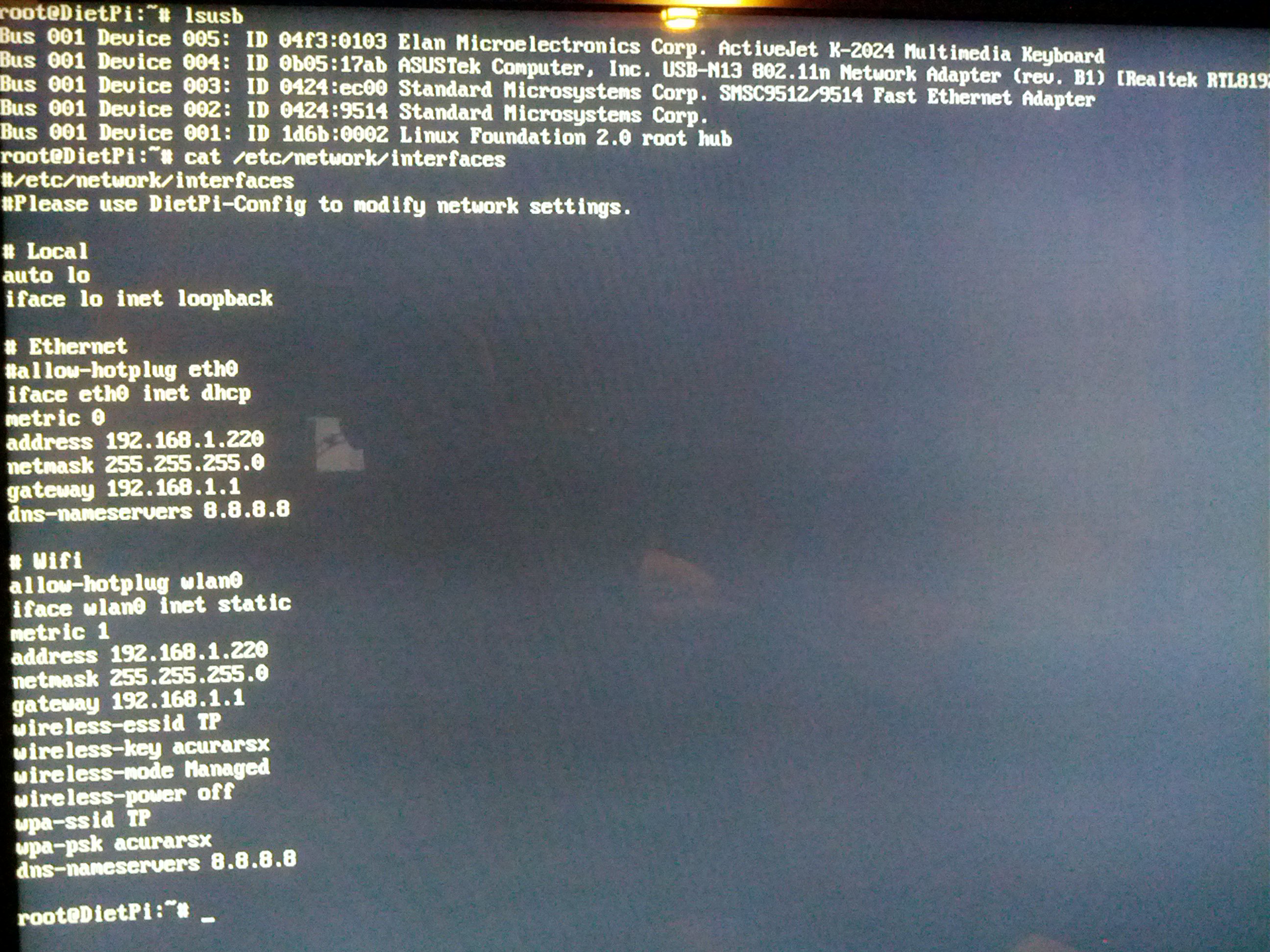

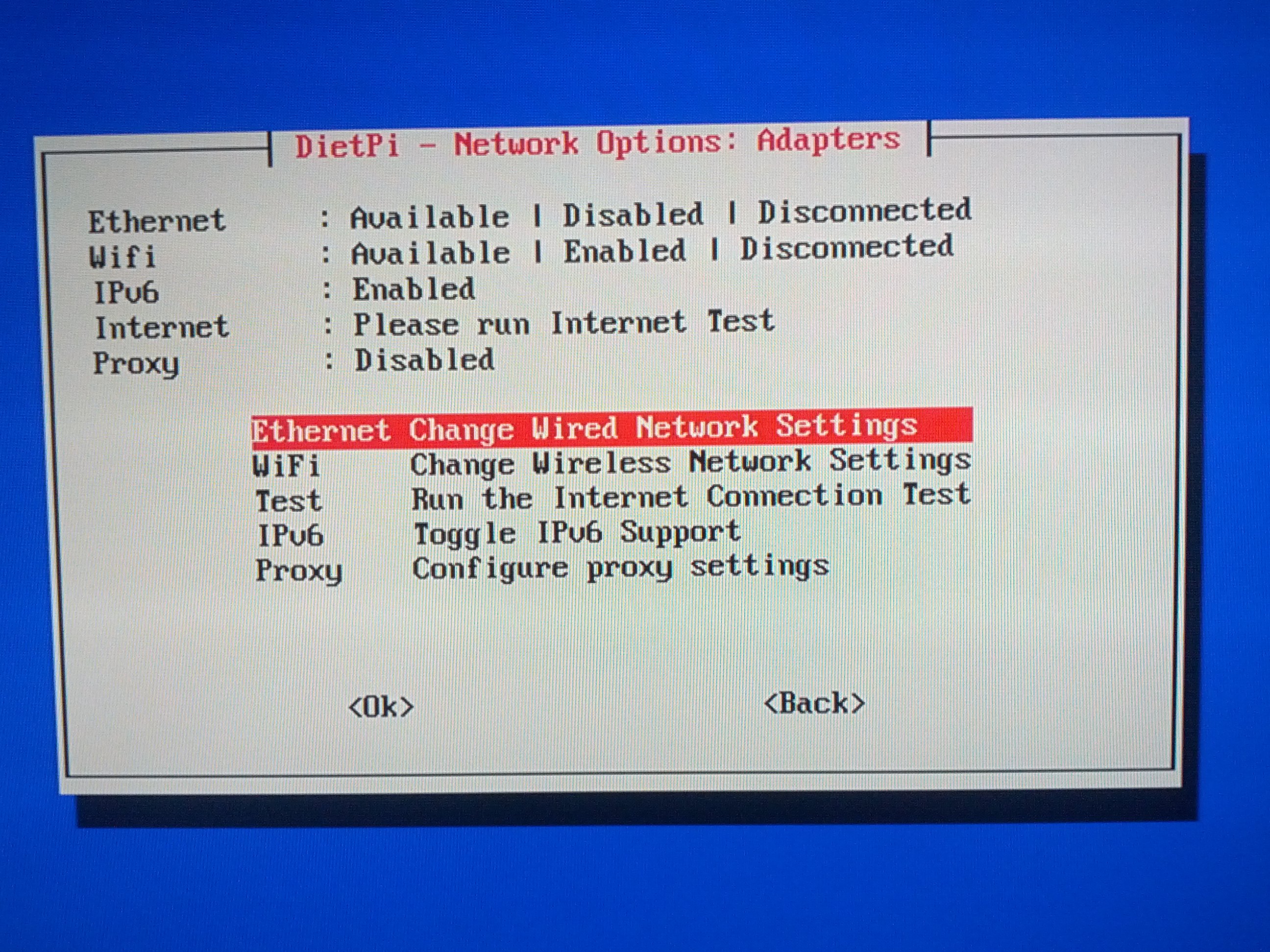

tohax · 17 September 2016 15:56

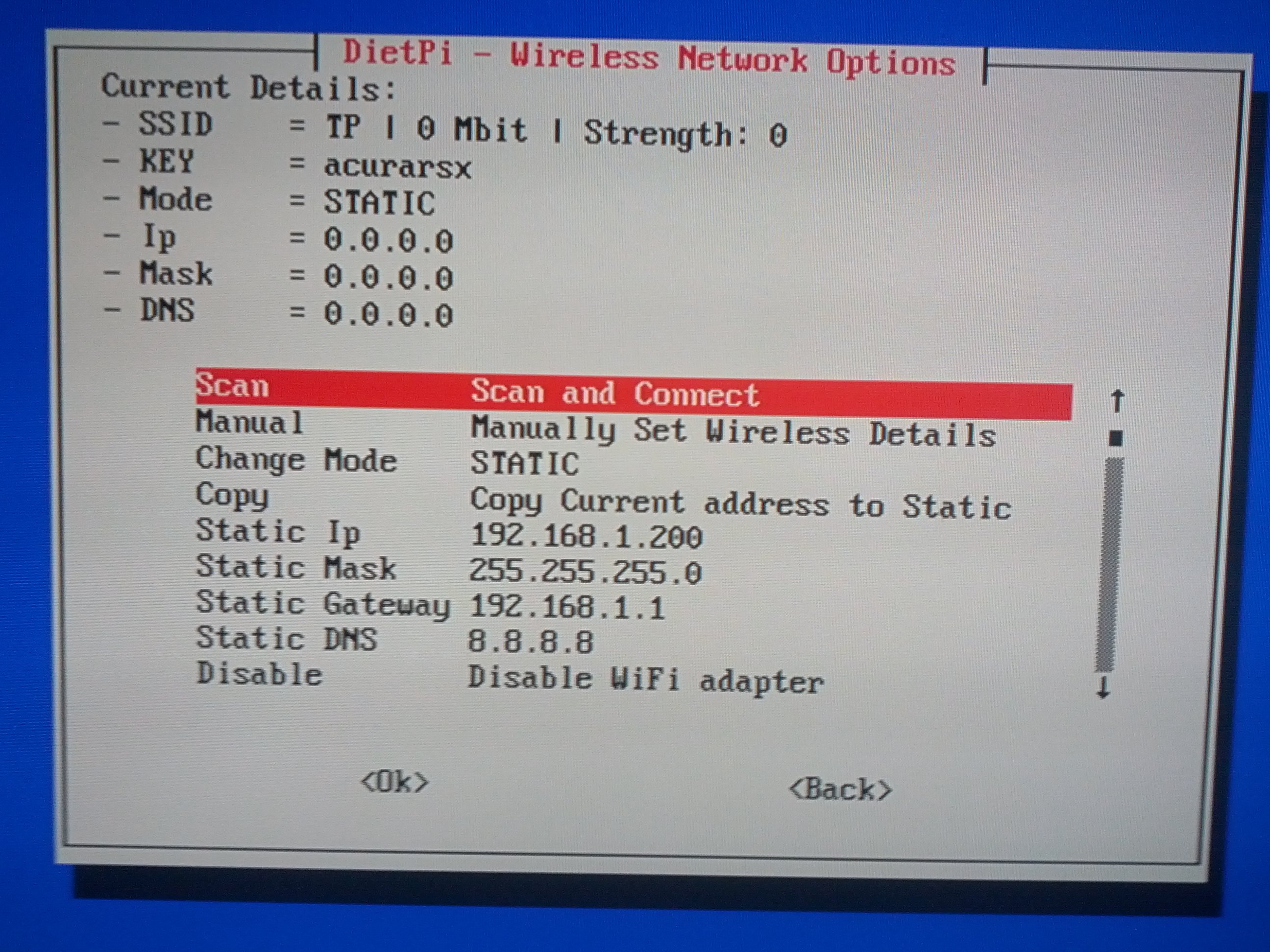

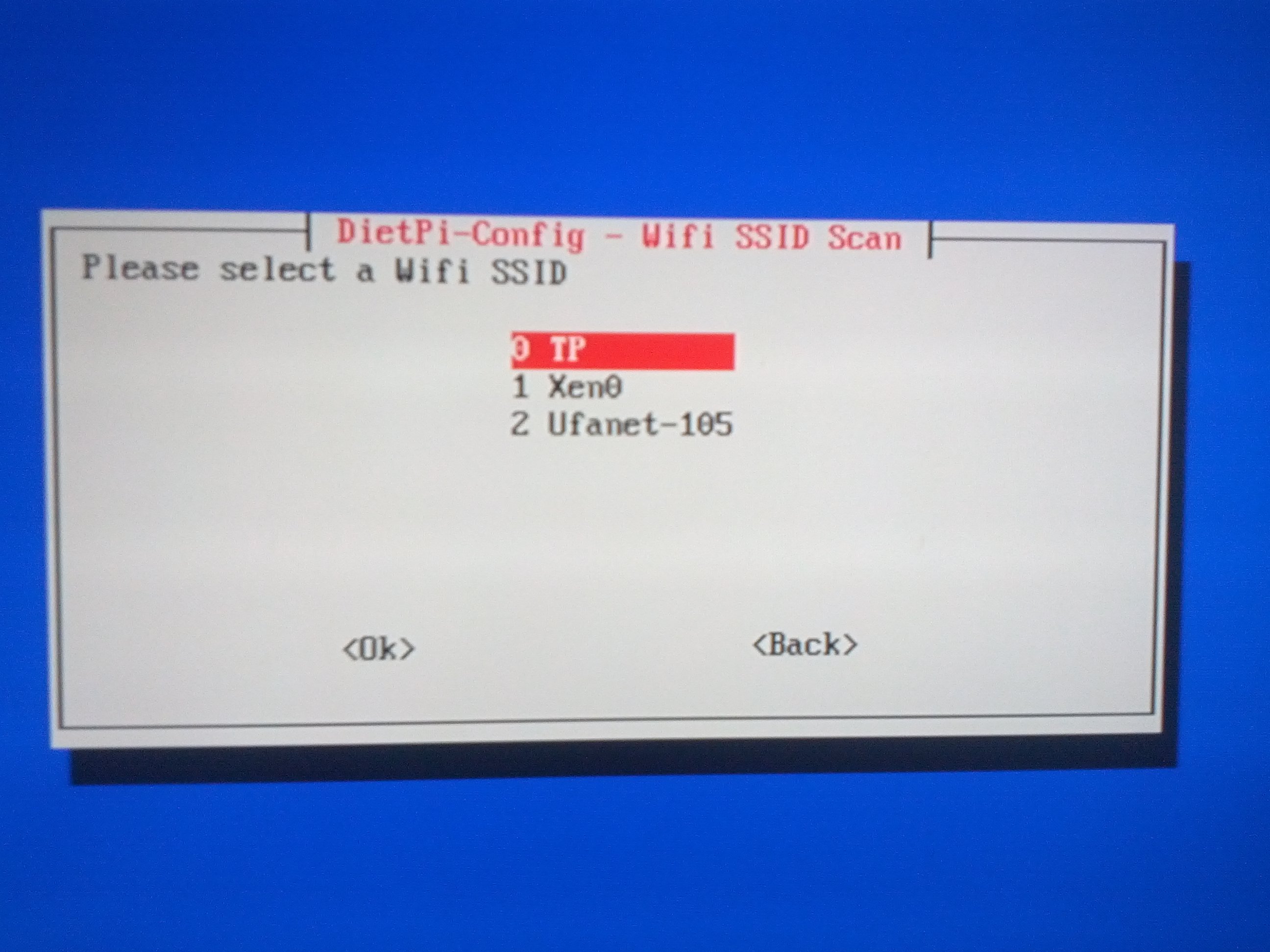

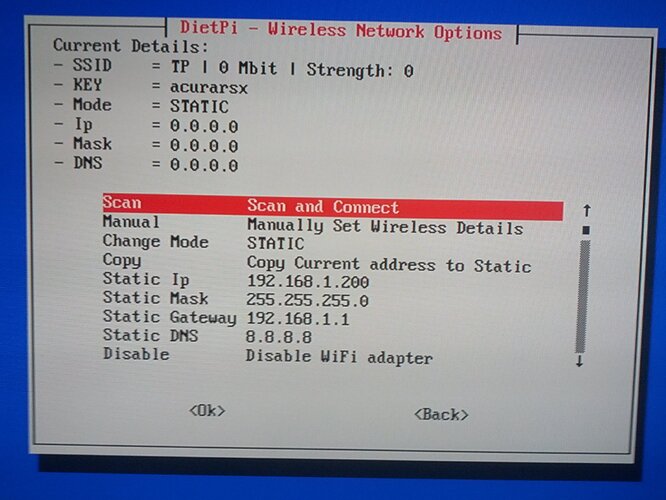

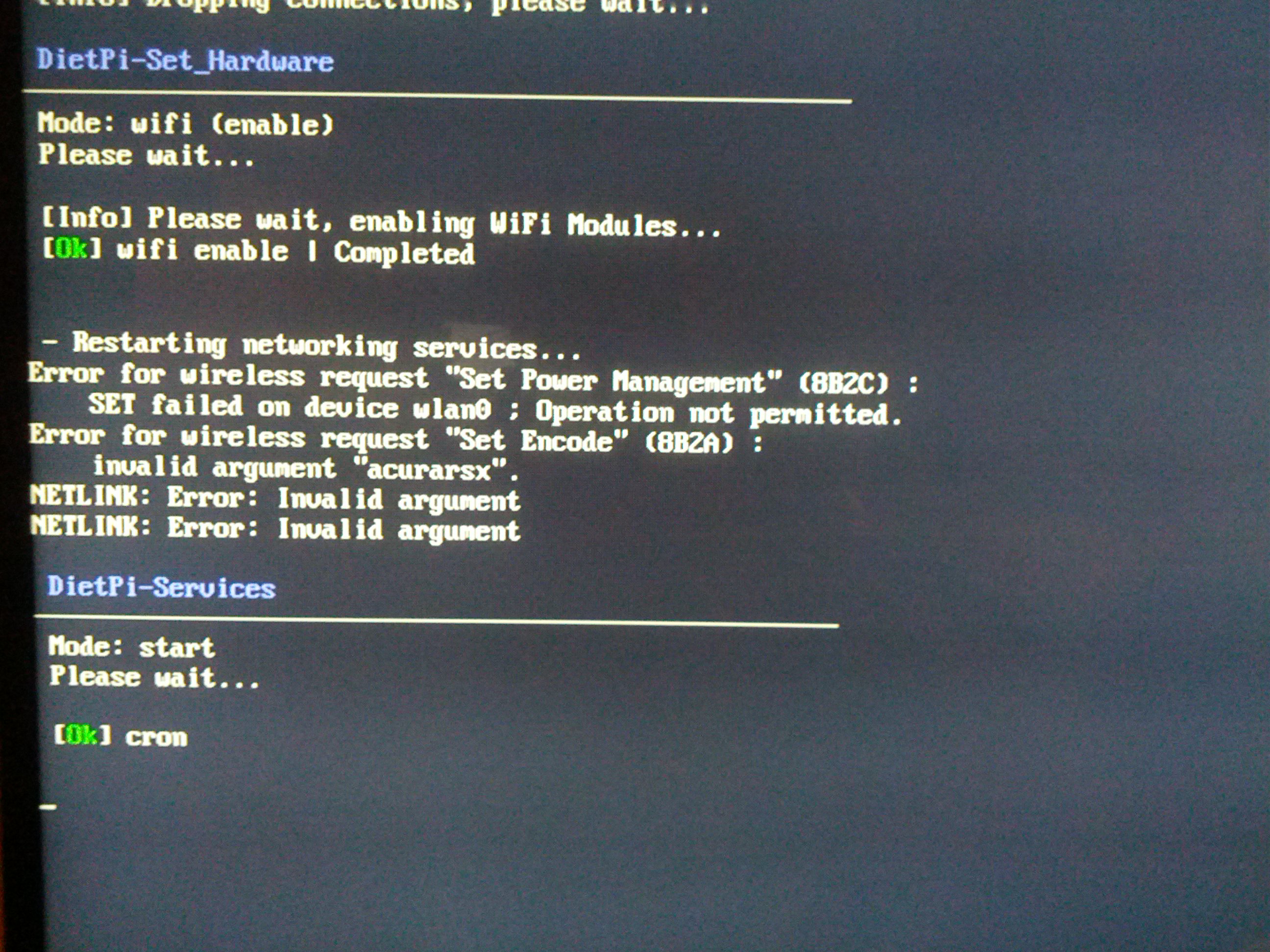

I am using DietPi_RPi-armv6-(Jessie). When i hit “Scan and connect” it find my ssid, then i enter password, and during network service restarting i get errors (NETLINK: error: invalid argument) and network is not working. If i choose DHCP then “scan and connect” and continue, i am getting IP address and other parameters, and network start working. But i need static network parameters applying during 1st boot. I think, that set WiFi country code is not necessary(am i wrong?) i tried set it up to RU and US, but it is not solve the problem. I have TP-Link 1043 nd v1 router with openwrt. WiFi working on 11 channel. but i tried others - no result. Do you have jessie v127 image? Because on v127 ALL working fine. Maybe new kernel is the problem or drivers for RTL8192?(my wifi adapter) Thanks for your help!

k-plan · 17 September 2016 17:08

Hi,

thanks tohax for reporting this

Testing with:

RPi B+
image: DietPi_v130_RPi-armv6-(Jessie).img
changes in dietpi.txt

Ethernet_Enabled=0
Wifi_Enabled=1

Use_Static=1

AUTO_Install_Enable=1

wifi_country_code=DE

wifi adapter (chipset - Realtek 8192cu ):

:~# lsusb
Bus 001 Device 005: ID 7392:7822 Edimax Technology Co., Ltd

:~# lsmod
Module                  Size  Used by
brcmfmac              201814  0
brcmutil                9031  1 brcmfmac
8192cu                597488  0
evdev                  11650  0
cfg80211              499234  2 brcmfmac,8192cu
rfkill                 21397  2 cfg80211
bcm2835_gpiomem         3823  0
bcm2835_wdt             4133  0
uio_pdrv_genirq         3718  0
uio                    10230  1 uio_pdrv_genirq
fuse                   90152  1
ipv6                  367575  14

Result:

booting up with static IP on wifi and disabled ethernet ==>> no IP address, no IP connection
switching via dietpi-config to DHCP ==>> IP address and IP connection will work

:~# uname -a
Linux RPi-B 4.4.19+ #907 Tue Sep 6 13:45:45 BST 2016 armv6l GNU/Linux

dmesg output while switching form DHCP => static IP

....

[   16.149262] cfg80211: Regulatory domain changed to country: DE
[   16.149305] cfg80211:  DFS Master region: ETSI
[   16.149320] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
[   16.149343] cfg80211:   (2400000 KHz - 2483500 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
[   16.149361] cfg80211:   (5150000 KHz - 5250000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (N/A)
[   16.149382] cfg80211:   (5250000 KHz - 5350000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (0 s)
[   16.149399] cfg80211:   (5470000 KHz - 5725000 KHz @ 160000 KHz), (N/A, 2698 mBm), (0 s)
[   16.149415] cfg80211:   (57000000 KHz - 66000000 KHz @ 2160000 KHz), (N/A, 4000 mBm), (N/A)
[   18.566603] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready
[  126.235856] ------------[ cut here ]------------
[  126.236834] WARNING: CPU: 0 PID: 6 at net/wireless/sme.c:907 __cfg80211_disconnected+0x280/0x2c8 [cfg80211]()
[  126.236943] Modules linked in: 8192cu evdev cfg80211 rfkill bcm2835_gpiomem bcm2835_wdt uio_pdrv_genirq uio fuse ipv6
[  126.237010] CPU: 0 PID: 6 Comm: kworker/u2:0 Not tainted 4.4.19+ #907
[  126.237023] Hardware name: BCM2708
[  126.237819] Workqueue: cfg80211 cfg80211_event_work [cfg80211]
[  126.237974] [<c0016cfc>] (unwind_backtrace) from [<c0013c20>] (show_stack+0x20/0x24)
[  126.238013] [<c0013c20>] (show_stack) from [<c02e38fc>] (dump_stack+0x20/0x28)
[  126.238044] [<c02e38fc>] (dump_stack) from [<c0021eb4>] (warn_slowpath_common+0x8c/0xc4)
[  126.238069] [<c0021eb4>] (warn_slowpath_common) from [<c0021fa8>] (warn_slowpath_null+0x2c/0x34)
[  126.238872] [<c0021fa8>] (warn_slowpath_null) from [<bf0e6b84>] (__cfg80211_disconnected+0x280/0x2c8 [cfg80211])
[  126.240106] [<bf0e6b84>] (__cfg80211_disconnected [cfg80211]) from [<bf0c20ac>] (cfg80211_process_wdev_events+0x1a0/0x20c [cfg80211])
[  126.241303] [<bf0c20ac>] (cfg80211_process_wdev_events [cfg80211]) from [<bf0c2154>] (cfg80211_process_rdev_events+0x3c/0x74 [cfg80211])
[  126.242820] [<bf0c2154>] (cfg80211_process_rdev_events [cfg80211]) from [<bf0bd208>] (cfg80211_event_work+0x24/0x2c [cfg80211])
[  126.243498] [<bf0bd208>] (cfg80211_event_work [cfg80211]) from [<c0037540>] (process_one_work+0x11c/0x39c)
[  126.243535] [<c0037540>] (process_one_work) from [<c0037800>] (worker_thread+0x40/0x4d0)
[  126.243566] [<c0037800>] (worker_thread) from [<c003d184>] (kthread+0xdc/0xf8)
[  126.243604] [<c003d184>] (kthread) from [<c000f8a8>] (ret_from_fork+0x14/0x2c)
[  126.243620] ---[ end trace 22f719d6d6b64ab0 ]---
[  126.775192] usbcore: registered new interface driver brcmfmac
[  132.000263] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready

...

[  134.346639] cfg80211: Regulatory domain changed to country: DE
[  134.346682] cfg80211:  DFS Master region: ETSI
[  134.346696] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
[  134.346716] cfg80211:   (2400000 KHz - 2483500 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
[  134.346732] cfg80211:   (5150000 KHz - 5250000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (N/A)
[  134.346747] cfg80211:   (5250000 KHz - 5350000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (0 s)
[  134.346760] cfg80211:   (5470000 KHz - 5725000 KHz @ 160000 KHz), (N/A, 2698 mBm), (0 s)
[  134.346772] cfg80211:   (57000000 KHz - 66000000 KHz @ 2160000 KHz), (N/A, 4000 mBm), (N/A)
[  135.715603] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready
[  168.261838] ------------[ cut here ]------------
[  168.262769] WARNING: CPU: 0 PID: 62 at net/wireless/sme.c:907 __cfg80211_disconnected+0x280/0x2c8 [cfg80211]()
[  168.262795] Modules linked in: brcmfmac brcmutil 8192cu evdev cfg80211 rfkill bcm2835_gpiomem bcm2835_wdt uio_pdrv_genirq uio fuse ipv6
[  168.262859] CPU: 0 PID: 62 Comm: kworker/u2:2 Tainted: G        W       4.4.19+ #907
[  168.262870] Hardware name: BCM2708
[  168.263558] Workqueue: cfg80211 cfg80211_event_work [cfg80211]
[  168.263872] [<c0016cfc>] (unwind_backtrace) from [<c0013c20>] (show_stack+0x20/0x24)
[  168.263909] [<c0013c20>] (show_stack) from [<c02e38fc>] (dump_stack+0x20/0x28)
[  168.263943] [<c02e38fc>] (dump_stack) from [<c0021eb4>] (warn_slowpath_common+0x8c/0xc4)
[  168.263968] [<c0021eb4>] (warn_slowpath_common) from [<c0021fa8>] (warn_slowpath_null+0x2c/0x34)
[  168.264817] [<c0021fa8>] (warn_slowpath_null) from [<bf0e6b84>] (__cfg80211_disconnected+0x280/0x2c8 [cfg80211])
[  168.266073] [<bf0e6b84>] (__cfg80211_disconnected [cfg80211]) from [<bf0c20ac>] (cfg80211_process_wdev_events+0x1a0/0x20c [cfg80211])
[  168.267319] [<bf0c20ac>] (cfg80211_process_wdev_events [cfg80211]) from [<bf0c2154>] (cfg80211_process_rdev_events+0x3c/0x74 [cfg80211])
[  168.268812] [<bf0c2154>] (cfg80211_process_rdev_events [cfg80211]) from [<bf0bd208>] (cfg80211_event_work+0x24/0x2c [cfg80211])
[  168.269651] [<bf0bd208>] (cfg80211_event_work [cfg80211]) from [<c0037540>] (process_one_work+0x11c/0x39c)
[  168.269696] [<c0037540>] (process_one_work) from [<c0037800>] (worker_thread+0x40/0x4d0)
[  168.269730] [<c0037800>] (worker_thread) from [<c003d184>] (kthread+0xdc/0xf8)
[  168.269765] [<c003d184>] (kthread) from [<c000f8a8>] (ret_from_fork+0x14/0x2c)
[  168.269780] ---[ end trace 22f719d6d6b64ab1 ]---
[  173.915893] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready

Have create a github issue for this: https://github.com/Fourdee/DietPi/issues/515

Solution at the moment:

only use DHCP for wifi

\

UPDATE

Testing again with same config but DietPi_v127_RPi-armv6-(Jessie).img

Result:

booting up with static IP on wifi and disabled ethernet ==>> IP address and IP connection will work ==> auto-update to DietPi_v130
switching via dietpi-config to DHCP ==>> IP address and IP connection will work

root@RPi-B:~# uname -a
Linux RPi-B 4.4.16+ #899 Thu Jul 28 12:36:19 BST 2016 armv6l GNU/Linux

… but the same annoying dmesg output:

[   11.871090] usbcore: registered new interface driver rtl8192cu
[   12.156795] cfg80211: Regulatory domain changed to country: DE
[   12.156838] cfg80211:  DFS Master region: ETSI
[   12.156854] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
[   12.156880] cfg80211:   (2400000 KHz - 2483500 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
[   12.156901] cfg80211:   (5150000 KHz - 5250000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (N/A)
[   12.156920] cfg80211:   (5250000 KHz - 5350000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (0 s)
[   12.156937] cfg80211:   (5470000 KHz - 5725000 KHz @ 160000 KHz), (N/A, 2698 mBm), (0 s)
[   12.156952] cfg80211:   (57000000 KHz - 66000000 KHz @ 2160000 KHz), (N/A, 4000 mBm), (N/A)
[   13.973864] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready
[   15.763437] Adding 102396k swap on /var/swap.  Priority:-1 extents:2 across:126972k SSFS
[   15.897195] cfg80211: World regulatory domain updated:
[   15.897238] cfg80211:  DFS Master region: unset
[   15.897255] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
[   15.897279] cfg80211:   (2402000 KHz - 2472000 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
[   15.897295] cfg80211:   (2457000 KHz - 2482000 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
[   15.897311] cfg80211:   (2474000 KHz - 2494000 KHz @ 20000 KHz), (N/A, 2000 mBm), (N/A)
[   15.897330] cfg80211:   (5170000 KHz - 5250000 KHz @ 80000 KHz, 160000 KHz AUTO), (N/A, 2000 mBm), (N/A)
[   15.897349] cfg80211:   (5250000 KHz - 5330000 KHz @ 80000 KHz, 160000 KHz AUTO), (N/A, 2000 mBm), (0 s)
[   15.897365] cfg80211:   (5490000 KHz - 5730000 KHz @ 160000 KHz), (N/A, 2000 mBm), (0 s)
[   15.897382] cfg80211:   (5735000 KHz - 5835000 KHz @ 80000 KHz), (N/A, 2000 mBm), (N/A)
[   15.897398] cfg80211:   (57240000 KHz - 63720000 KHz @ 2160000 KHz), (N/A, 0 mBm), (N/A)
[   16.033289] cfg80211: Regulatory domain changed to country: DE
[   16.033331] cfg80211:  DFS Master region: ETSI
[   16.033347] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
[   16.033369] cfg80211:   (2400000 KHz - 2483500 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
[   16.033392] cfg80211:   (5150000 KHz - 5250000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (N/A)
[   16.033412] cfg80211:   (5250000 KHz - 5350000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (0 s)
[   16.033429] cfg80211:   (5470000 KHz - 5725000 KHz @ 160000 KHz), (N/A, 2698 mBm), (0 s)
[   16.033445] cfg80211:   (57000000 KHz - 66000000 KHz @ 2160000 KHz), (N/A, 4000 mBm), (N/A)
[   18.447248] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready
[   97.391629] ------------[ cut here ]------------
[   97.392608] WARNING: CPU: 0 PID: 6 at net/wireless/sme.c:907 __cfg80211_disconnected+0x280/0x2c8 [cfg80211]()
[   97.392633] Modules linked in: 8192cu evdev cfg80211 rfkill bcm2835_gpiomem bcm2835_wdt uio_pdrv_genirq uio fuse ipv6
[   97.392698] CPU: 0 PID: 6 Comm: kworker/u2:0 Not tainted 4.4.16+ #899
[   97.392710] Hardware name: BCM2708
[   97.393441] Workqueue: cfg80211 cfg80211_event_work [cfg80211]
[   97.393524] [<c0016c9c>] (unwind_backtrace) from [<c0013c20>] (show_stack+0x20/0x24)
[   97.393559] [<c0013c20>] (show_stack) from [<c02e359c>] (dump_stack+0x20/0x28)
[   97.393594] [<c02e359c>] (dump_stack) from [<c0021e54>] (warn_slowpath_common+0x8c/0xc4)
[   97.393619] [<c0021e54>] (warn_slowpath_common) from [<c0021f48>] (warn_slowpath_null+0x2c/0x34)
[   97.394371] [<c0021f48>] (warn_slowpath_null) from [<bf0e5b84>] (__cfg80211_disconnected+0x280/0x2c8 [cfg80211])
[   97.395652] [<bf0e5b84>] (__cfg80211_disconnected [cfg80211]) from [<bf0c10ac>] (cfg80211_process_wdev_events+0x1a0/0x20c [cfg80211])
[   97.397143] [<bf0c10ac>] (cfg80211_process_wdev_events [cfg80211]) from [<bf0c1154>] (cfg80211_process_rdev_events+0x3c/0x74 [cfg80211])
[   97.398609] [<bf0c1154>] (cfg80211_process_rdev_events [cfg80211]) from [<bf0bc208>] (cfg80211_event_work+0x24/0x2c [cfg80211])
[   97.399611] [<bf0bc208>] (cfg80211_event_work [cfg80211]) from [<c00374e0>] (process_one_work+0x11c/0x39c)
[   97.399656] [<c00374e0>] (process_one_work) from [<c00377a0>] (worker_thread+0x40/0x4d0)
[   97.399686] [<c00377a0>] (worker_thread) from [<c003d124>] (kthread+0xdc/0xf8)
[   97.399723] [<c003d124>] (kthread) from [<c000f8a8>] (ret_from_fork+0x14/0x2c)
[   97.399738] ---[ end trace f13b9e6ac140c28b ]---
[   97.933622] usbcore: registered new interface driver brcmfmac
[  103.180406] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready
[  105.454529] cfg80211: World regulatory domain updated:
[  105.454574] cfg80211:  DFS Master region: unset
[  105.454589] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
[  105.454610] cfg80211:   (2402000 KHz - 2472000 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
[  105.454625] cfg80211:   (2457000 KHz - 2482000 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
[  105.454639] cfg80211:   (2474000 KHz - 2494000 KHz @ 20000 KHz), (N/A, 2000 mBm), (N/A)
[  105.454653] cfg80211:   (5170000 KHz - 5250000 KHz @ 80000 KHz, 160000 KHz AUTO), (N/A, 2000 mBm), (N/A)
[  105.454670] cfg80211:   (5250000 KHz - 5330000 KHz @ 80000 KHz, 160000 KHz AUTO), (N/A, 2000 mBm), (0 s)
[  105.454683] cfg80211:   (5490000 KHz - 5730000 KHz @ 160000 KHz), (N/A, 2000 mBm), (0 s)
[  105.454696] cfg80211:   (5735000 KHz - 5835000 KHz @ 80000 KHz), (N/A, 2000 mBm), (N/A)
[  105.454710] cfg80211:   (57240000 KHz - 63720000 KHz @ 2160000 KHz), (N/A, 0 mBm), (N/A)
[  105.545701] cfg80211: Regulatory domain changed to country: DE
[  105.545742] cfg80211:  DFS Master region: ETSI
[  105.545756] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
[  105.545777] cfg80211:   (2400000 KHz - 2483500 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
[  105.545793] cfg80211:   (5150000 KHz - 5250000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (N/A)
[  105.545812] cfg80211:   (5250000 KHz - 5350000 KHz @ 80000 KHz, 200000 KHz AUTO), (N/A, 2000 mBm), (0 s)
[  105.545825] cfg80211:   (5470000 KHz - 5725000 KHz @ 160000 KHz), (N/A, 2698 mBm), (0 s)
[  105.545838] cfg80211:   (57000000 KHz - 66000000 KHz @ 2160000 KHz), (N/A, 4000 mBm), (N/A)
[  106.914932] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready

tohax · 17 September 2016 19:24

Thank you very much! Waiting for v131 to come out
