Advanced Options not loading in ROCK 4 dietpi-config

[andreagdipaolo]

Creating a bug report/issue

[v] I have searched the existing open and closed issues

Required Information

• DietPi version | G_DIETPI_VERSION_CORE=9 G_DIETPI_VERSION_SUB=4 G_DIETPI_VERSION_RC=2 G_GITBRANCH='master' G_GITOWNER='MichaIng' G_LIVE_PATCH_STATUS[0]='not applicable'
• Distro version | bookworm
• Kernel version | Linux DietPi 6.6.16-current-rockchip64 #1 SMP PREEMPT Fri Feb 23 08:25:28 UTC 2024 aarch64 GNU/Linux
• Architecture | arm64
• SBC model | ROCK 4 (aarch64) (B)
• Power supply used | not relevant
• SD card used | SSD, not relevant

Additional Information (if applicable)

• Can this issue be replicated on a fresh installation of DietPi? I would rather not try it, just asking for feedback
  ← If you sent a “dietpi-bugreport”, please paste the ID here →
• Bug report ID | 15a01611-ba50-4e27-847c-895b1dca6271

Steps to reproduce

1. Go into dietpi-config
2. Select to option 4 (Advanced Options)

Expected behaviour

The advanced options menu should be opened

Actual behaviour

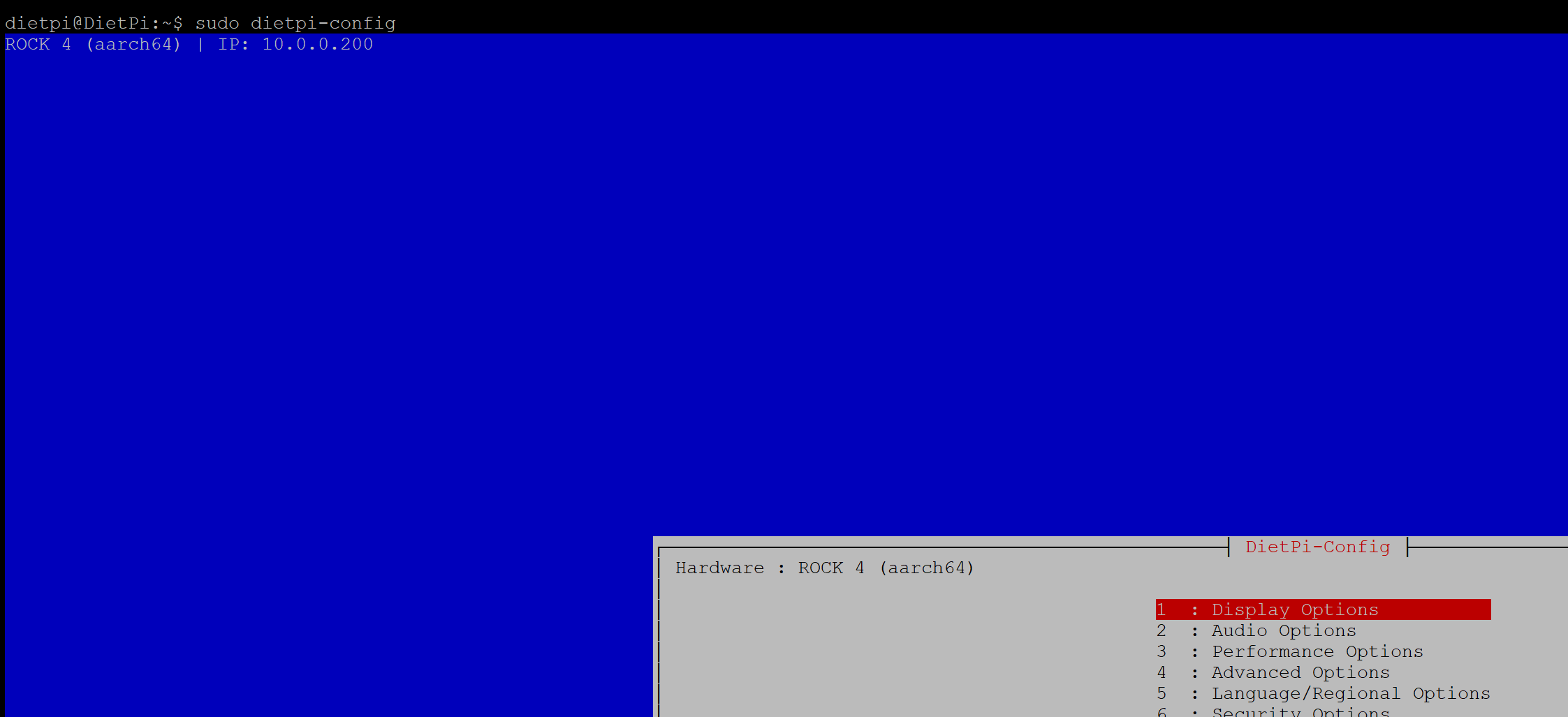

For a moment the screen turns back to the command line and then it loads the dietpi-config menu again.

Extra details

Other menu items load properly.

[Joulinar]

@MichaIng do you know if the advanced options are supported on Rock4?

@andreagdipaolo

For a moment the screen turns back to the command line and then it loads the dietpi-config menu again.

@andreagdipaolo if connected via SSH, you should be able to scroll up the screen once dietpi-config has been loaded again. Any hint’s there?

[andreagdipaolo]

@Joulinar

do you know if the advanced options are supported on Rock4?

I can reply to that: yes, indeed. There is surely the SPI flasher, among other options.

@Joulinar

@andreagdipaolo if connected via SSH, you should be able to scroll up the screen once dietpi-config has been loaded again. Any hint’s there?

I’m unable to scroll up, the screen is fixed on the blue page. If I exit I see nothing but the sudo dietpi-config command.

[Joulinar]

Depending on the SSH terminal used, it should be possible to scroll up.

[andreagdipaolo]

I’m using Termius.
I was able to do that in Putty.
Nothing:

[MichaIng]

Please apply the live patch from 2 weeks ago:

dietpi-update

[andreagdipaolo]

I performed it and no live patch is being installed. It doesn’t prompt me to install new patches, maybe I already have them.
Rebooted and still unaccessible.

[Joulinar]

@andreagdipaolo

G_LIVE_PATCH_STATUS[0]=‘not applicable’

Thats the patch status from initial post

[MichaIng]

Ah whoops, I missed to apply the live patch on ROCK 4, did so for ROCK 5B, Orange Pi 5 (Plus) and Orange Pi 3B only.

Since release is next week, I’ll not add another live patch. Fix it manually:

sed -i 's/"Update SPI bootloader'\'' '\''/'\''Update SPI bootloader'\'' "/' /boot/dietpi/dietpi-config
